HEGERLS Vertical Two-Way Shuttle is an intelligent vertical transfer shuttle designed for three-dimensional warehouse automation. It moves vertically along the storage structure and carries pallets or four-way shuttle vehicles to complete Z-axis level transfer.
By integrating vertical lifting and intelligent shuttle technology, Vertical Two-Way Shuttle enables flexible multi-level storage operations and can be combined with four-way shuttle systems to create a six-way shuttle solution with XYZ three-dimensional movement capability.

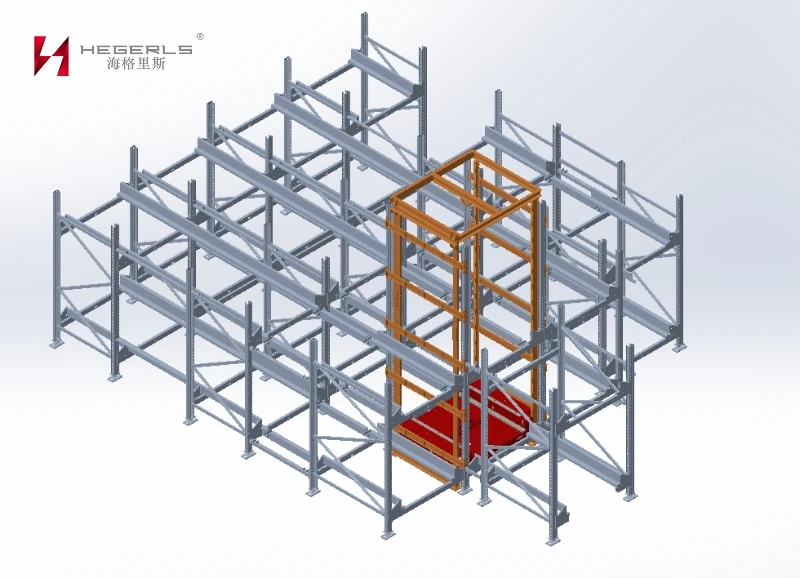

HEGERLS Vertical Two-Way Shuttle System consists of vertical shuttle vehicles, lifting mechanisms, storage racks, four-way shuttle interfaces, and intelligent control systems.

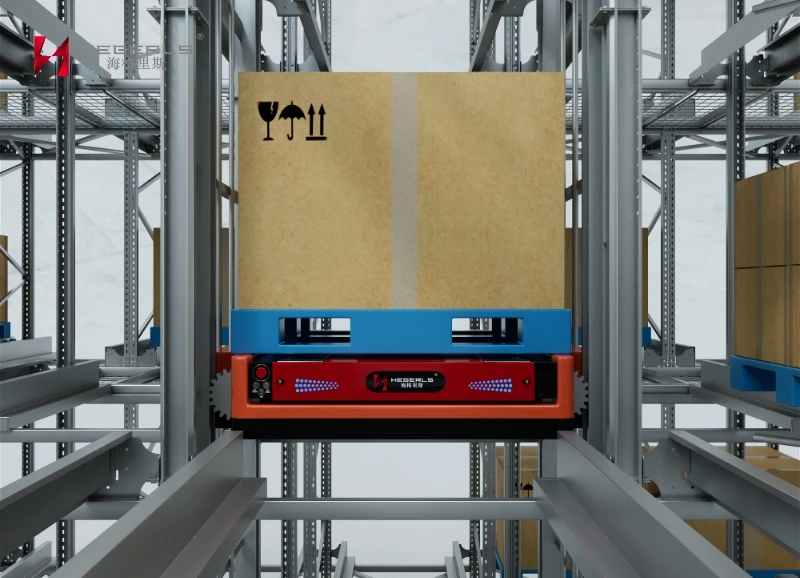

The Vertical Two-Way Shuttle works as a vertical transportation unit inside the warehouse. It carries pallets or four-way shuttle vehicles between different storage levels, enabling efficient layer-changing operations without requiring traditional elevators or complex transfer systems.
Main Components:

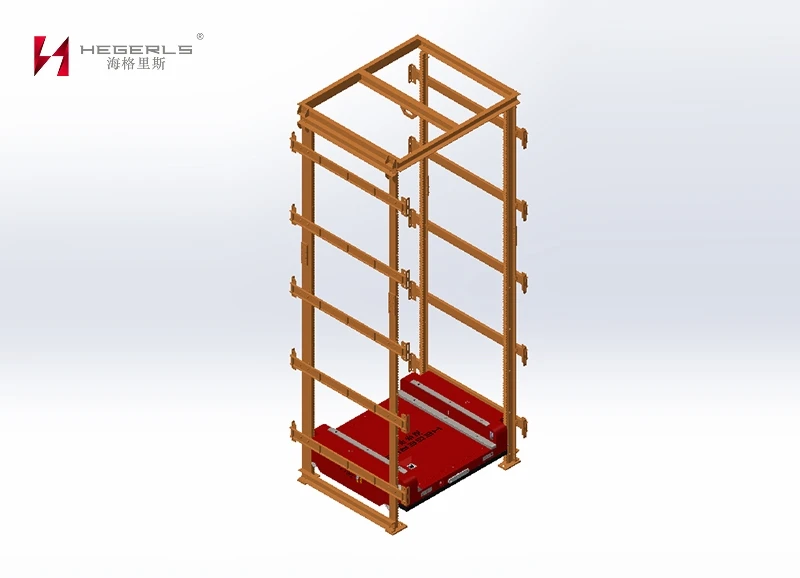

Vertical Two-Way Shuttle Vehicle
Vertical Transfer Mechanism
Four-Way Shuttle Interface
Pallet Transfer Platform
Intelligent Control System
The Vertical Two-Way Shuttle is specially designed for vertical movement, enabling pallets or four-way shuttle vehicles to move between different storage levels and achieve three-dimensional warehouse operations.
The Vertical Two-Way Shuttle can work together with four-way shuttle vehicles, forming a six-way shuttle system that enables XYZ three-dimensional movement and improves warehouse flexibility.
The compact structure requires only one storage position, reducing the space occupation of traditional lifting equipment and improving overall warehouse utilization.
With positioning accuracy up to ±2 mm, the system ensures stable and accurate layer-changing operations for pallets and shuttle vehicles.
The system supports different warehouse layouts and application requirements, including pallet storage, tote handling, single-depth, and double-depth storage configurations.
Compared with conventional warehouse lifting equipment, Vertical Two-Way Shuttle provides a more compact and cost-efficient vertical transfer solution while maintaining intelligent automation capability.
|
Parameter |
Specification |
|
Equipment Type |
Vertical Two-Way Shuttle |
|
Main Function |
Z-Axis Vertical Layer Transfer |
|
Application |
Pallet / Four-Way Shuttle Transfer |
|
Load Capacity |
1,500 kg |
| Lifting Height | 0–30 m |
| Lifting Speed (No Load) | 1.0 m/s |
| Lifting Speed (Full Load) | 0.5 m/s |
| Acceleration | 0.3 m/s² |
|
Positioning Accuracy |
±2 mm |
| Operating Temperature |
Low-Temperature Version: -25 to 10°C Standard-Temperature Version:-10 to 50°C |
|
Movement Mode |
Vertical Transfer + Shuttle Transportation |
|
System Integration |
Four-Way Shuttle / Smart Warehouse System |
Warehouse control systems assign storage or retrieval tasks according to inventory requirements.
The Vertical Two-Way Shuttle moves along the Z-axis and transports pallets or shuttle vehicles between different warehouse levels.
After reaching the target level, the pallet or four-way shuttle performs horizontal storage and retrieval operations.
The system coordinates vertical and horizontal movement to achieve efficient three-dimensional warehouse automation.
A Vertical Two-Way Shuttle is an intelligent warehouse transfer device that moves vertically and carries pallets or four-way shuttle vehicles to complete Z-axis level changes.
Unlike traditional warehouse elevators, Vertical Two-Way Shuttle is a compact shuttle-based transfer system designed specifically for intelligent storage operations, requiring less space and providing more flexible integration.
Yes. Vertical Two-Way Shuttle can transport four-way shuttle vehicles between levels, creating a six-way shuttle system with XYZ three-dimensional movement.
It is suitable for e-commerce picking, pharmaceutical storage, cold chain food sorting, manufacturing logistics, and other applications requiring multi-level intelligent storage.
