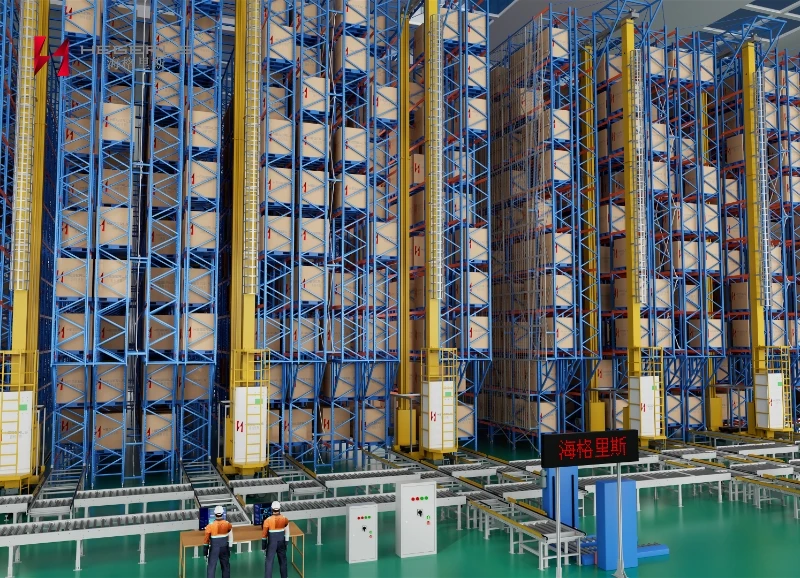

HEGERLS Stacker Crane AS/RS is a core automation device designed for high-bay automated warehouses, enabling precise pallet storage and retrieval operations between high-level racks.
Supporting warehouse heights up to 40 meters and load capacities from 200 kg to 2,000 kg, the system is widely used in manufacturing, logistics, food & beverage, and industrial warehousing applications to achieve high-density storage, efficient material flow, and intelligent warehouse operations.

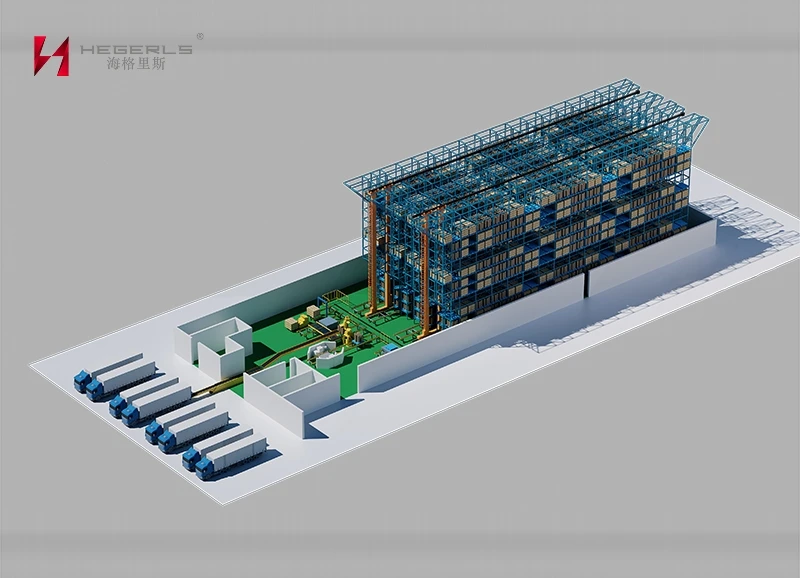

HEGERLS Stacker Crane AS/RS integrates automated stacker cranes, high-bay racking systems, conveyors, warehouse control systems, and warehouse management software.
The stacker crane performs three key movements: horizontal travel, vertical lifting, and fork extension, allowing accurate pallet storage and retrieval in deep and high-level rack structures.
Main Components:
Pallet Stacker Crane
High-Bay Storage Racking
Conveyor System
WMS/WCS Control System
Designed for vertical warehouse applications, HEGERLS stacker cranes maximize building height utilization and significantly increase storage capacity.
With travel speeds up to 5 m/s and lifting speeds up to 4 m/s, the system delivers fast pallet handling and improves warehouse throughput.
Advanced servo control technology achieves positioning accuracy up to ±3 mm, ensuring stable and reliable pallet storage operations.
The system supports pallet loads from 200 kg to 2,000 kg, meeting different industrial storage requirements.
The double-column design provides excellent structural stability for high-rise warehouse operations and continuous 24/7 operation.
Compatible with WMS and WCS platforms, the system enables automated scheduling, real-time monitoring, and intelligent warehouse management.
|
Parameter |
Specification |
|
Equipment Type |
Pallet Stacker Crane AS/RS |
|
Structure Type |
Double Column / Single Column |
|
Application |
Pallet Automated Storage |
|
Warehouse Height |
3 m – 40 m |
|
Pallet Size |
500 × 500 – 1300 × 1300 mm |
|
Load Capacity |
200 kg – 2,000 kg |
|
Travel Speed |
0–180 m/min |
|
Lifting Speed |
0–60 m/min |
|
Fork Speed |
0–60 m/min |
|
Load Type |
Single / Double / Multi-position |
|
Fork Type |
Single Fork / Double Deep Fork / Customized Fork |
|
Power Supply |
Sliding Contact Line / Cable |
Not sure which pallet-storage architecture fits your project? This AS/RS versus four-way shuttle guide compares density, flow, building fit, resilience and lifecycle scope.
Incoming pallets are identified and transferred into the automated warehouse system.
WMS/WCS assigns optimized storage locations according to inventory requirements.

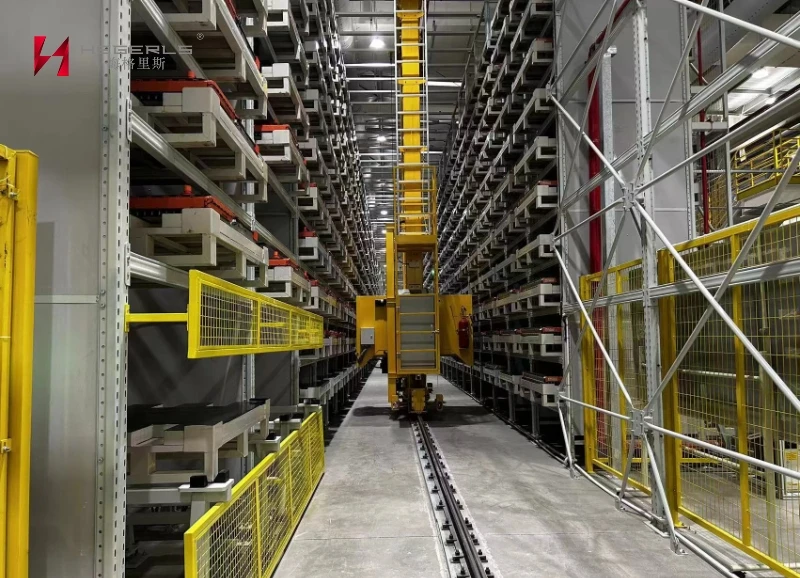

The stacker crane travels along the aisle, lifts pallets, and places them accurately into rack positions.
Required pallets are automatically retrieved and delivered to outbound conveyors.
Widely applicable to scenarios requiring high density, low temperature, and high-precision inventory management:
Intelligent AS/RS Warehouse Solution for Third-Party Logistics Park in China
A stacker crane is an automated storage and retrieval device that moves horizontally and vertically along warehouse aisles to store and retrieve pallets or totes in high-rise racks.
HEGERLS stacker cranes can support high-bay warehouses up to 40 meters in height, depending on project requirements and system configuration.
Pallet stacker cranes are designed for heavy pallet handling, while mini load stacker cranes are optimized for smaller totes, cartons, and lightweight materials.
Yes. HEGERLS stacker crane systems can integrate with warehouse management systems and warehouse control systems to achieve intelligent automated operations.
