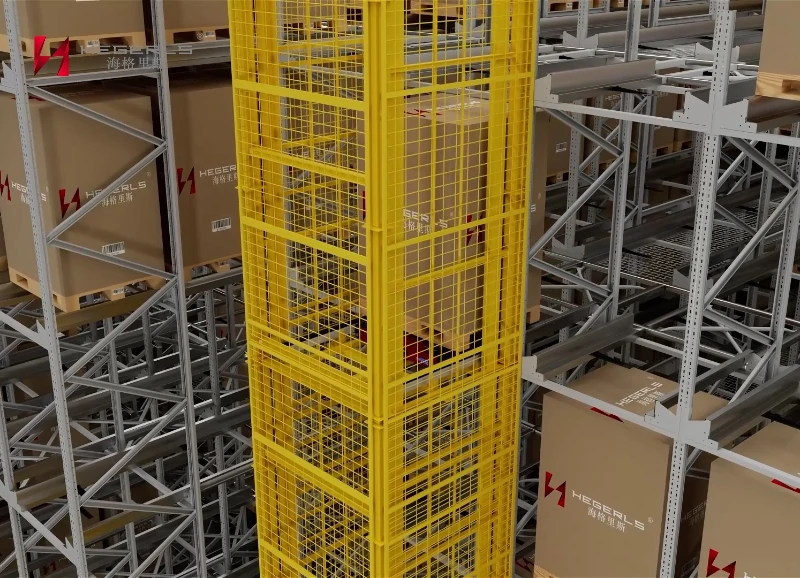

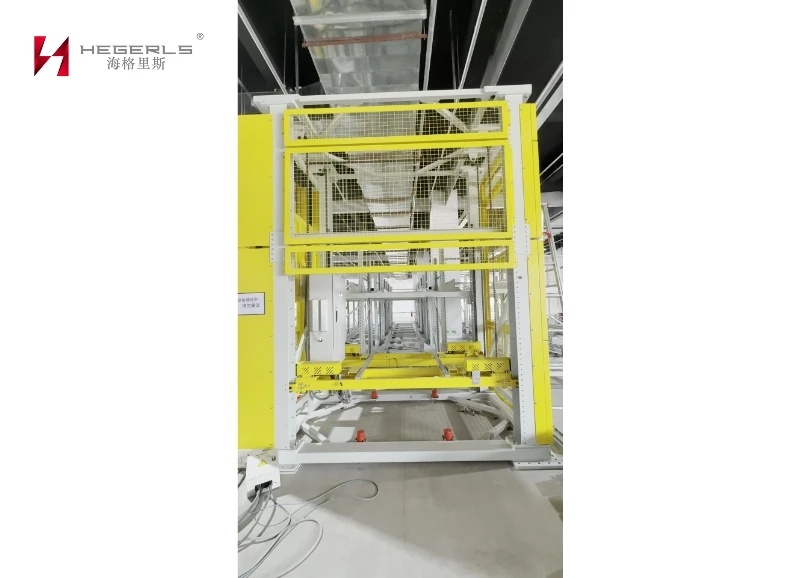

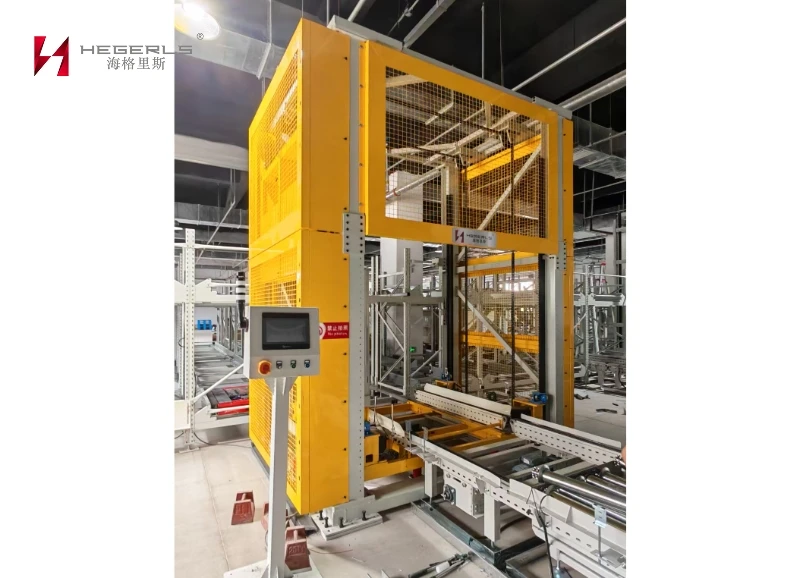

HEGERLS Shuttle Lift / Pallet Elevator is a key vertical logistics device designed for multi-level shuttle warehouse systems. As an essential component of four-way shuttle and multi-layer shuttle solutions, it enables efficient vertical transfer of pallets and shuttle vehicles between different rack levels.
By connecting different storage layers, the shuttle lift creates a complete three-dimensional automated logistics loop, improving warehouse space utilization, operational efficiency, and system flexibility.
HEGERLS Shuttle Lift / Pallet Elevator consists of a lifting platform, vertical drive system, positioning system, safety protection devices, and intelligent control interface.
The equipment is designed specifically for dense storage environments, working together with four-way shuttle systems, and automated racking systems to achieve smooth cross-level transportation.
Main Components:
Shuttle Lift Platform
Vertical Lifting Mechanism
Precision Positioning System
Safety Protection System
WMS/WCS Integration Interface
The Shuttle Lift enables automatic vertical movement of pallets and shuttle vehicles between different rack levels, supporting multi-layer warehouse operations and improving system flexibility.
Designed for four-way shuttle and multi-level shuttle systems, the Layer Lift provides seamless connection between storage levels and completes the vertical logistics cycle.
Equipped with advanced positioning technology, the system achieves ±2 mm repeat positioning accuracy, ensuring stable and reliable transfer operations.
With a standard load capacity of 1,000–2,000 kg, the system supports pallet-level material handling for various industrial storage applications.
The Shuttle Lift provides a maximum lifting speed of 1.2 m/s, improving warehouse throughput and reducing waiting time between storage levels.
The blue frame structure is optimized for high-density storage environments, providing stable operation while maximizing warehouse space utilization.
|
Parameter |
Specification |
|
Equipment Type |
Shuttle Lift / Pallet Elevator |
|
Application |
Multi-Level Shuttle Warehouse |
|
Main Function |
Vertical Layer Transfer |
|
Load Capacity |
1,000–2,000 kg |
|
Maximum Lifting Speed |
1.2 m/s |
|
Running Acceleration |
0.5 m/s² |
|
Positioning Accuracy |
±2 mm |
|
Maximum Lifting Height |
30 m |
|
Compatible Systems |
Four-Way Shuttle / Multi-Level Shuttle System |
|
Structure Type |
Frame Structure |
The four-way shuttle or pallet enters the lifting platform at the designated storage level.
The Shuttle Lift moves vertically along the Z-axis and transfers the shuttle vehicle or pallet to the target storage level.
After reaching the destination layer, the shuttle vehicle continues horizontal movement to complete storage or retrieval operations.
The Layer Lift connects multiple storage levels to create a complete three-dimensional automated warehouse workflow.
Widely applicable to scenarios requiring high density, low temperature, and high-precision inventory management:
A Shuttle Lift is a vertical transfer device used in multi-level shuttle warehouse systems to move pallets or shuttle vehicles between different storage layers.
A Shuttle Lift is specifically designed for shuttle-based automated warehouses, providing precise positioning and seamless integration with shuttle vehicles, while traditional elevators are mainly used for general vertical material transfer.
Yes. HEGERLS Shuttle Lift is designed as a key supporting device for four-way shuttle and multi-layer shuttle systems, enabling cross-level shuttle movement.
HEGERLS Shuttle Lift supports lifting heights up to 30 meters, meeting the requirements of high-density multi-level warehouse applications.
