HEGERLS Warehouse Automation Solutions & High-Density Storage Systems

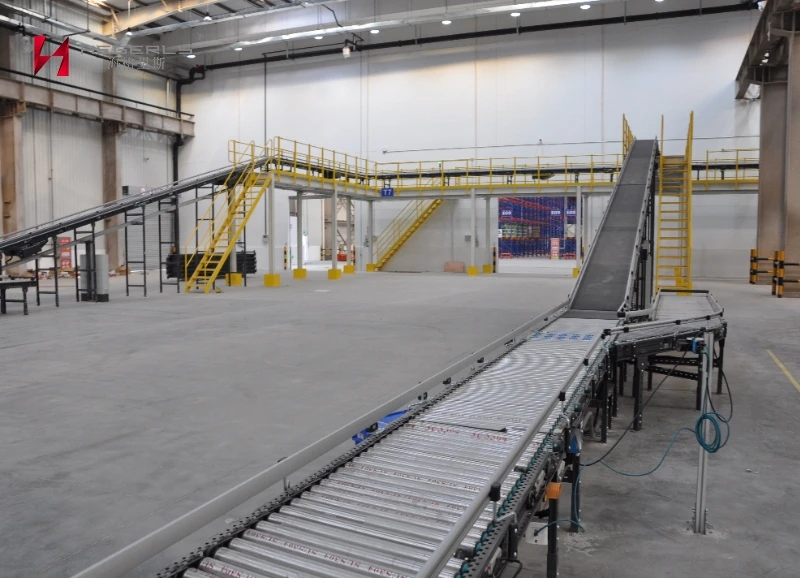

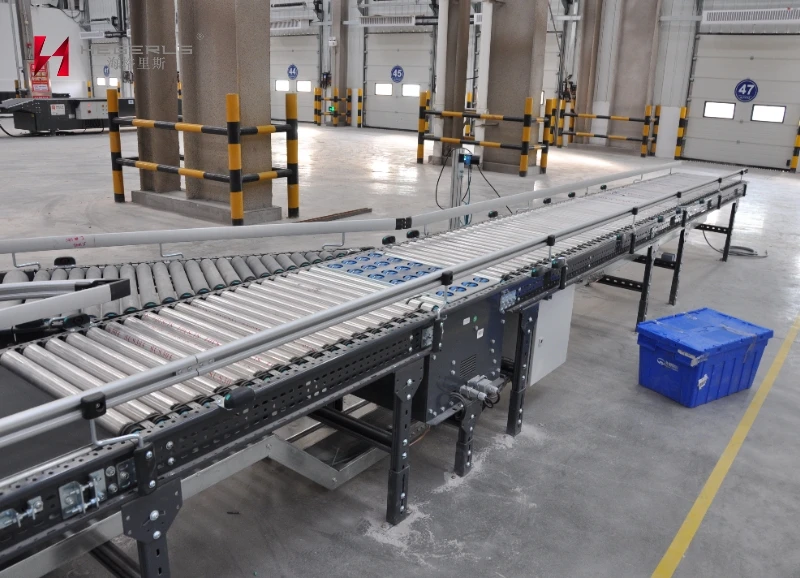

HEGERLS Roller Conveyor System is a flexible material handling solution designed for the automatic transportation of cartons, packages, pallets, and various unit loads.
With modular roller structures and intelligent control options, the system can be customized for horizontal, inclined, turning, and accumulation conveying applications.
It is widely used in e-commerce distribution centers, automated warehouses, manufacturing production lines, and food & pharmaceutical industries, helping enterprises achieve efficient, stable, and intelligent logistics operations.

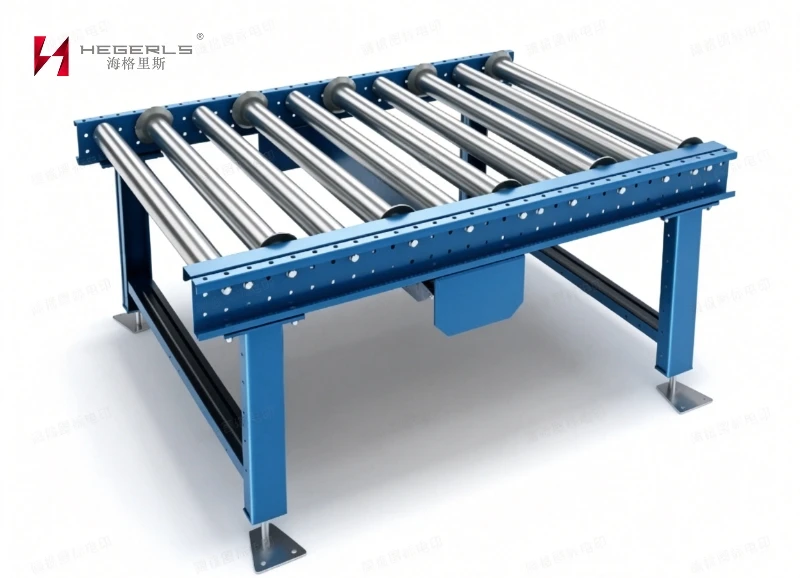

HEGERLS Roller Conveyor System adopts a modular integrated structure consisting of conveyor frames, rollers, drive units, and intelligent control components.
The system is designed for flexible configuration and seamless integration with automated warehouse systems, enabling stable material transportation for cartons, totes, pallets, and various unit loads.
Different conveyor modules, roller types, and control configurations can be selected according to load capacity, product dimensions, conveying distance, and automation requirements.
Conveyor Frames
Conveyor Rollers
Drive System
Motor & Transmission Components
Control System
Sensors & Detection Devices
Safety Protection Components
WMS/WCS Communication Interfaces
HEGERLS Roller Conveyor is suitable for various unit loads, including:
Cartons
Plastic totes
Packages
Pallets
Industrial containers
Providing one-stop conveying solutions for different industries.
Designed with a strong frame structure and durable roller components, the system supports loads up to 1500kg.
Advantages include:
Stable transportation performance
Strong bearing capacity
Long service life
Reliable operation in industrial environments
The conveyor system supports a speed range of 0.5–30m/min.
The adjustable speed design allows the conveyor to adapt to:
Different production rhythms
Warehouse throughput requirements
Automated sorting processes
Improving overall operational efficiency.
The modular structure allows customized layouts according to warehouse and production requirements.
Available configurations include:

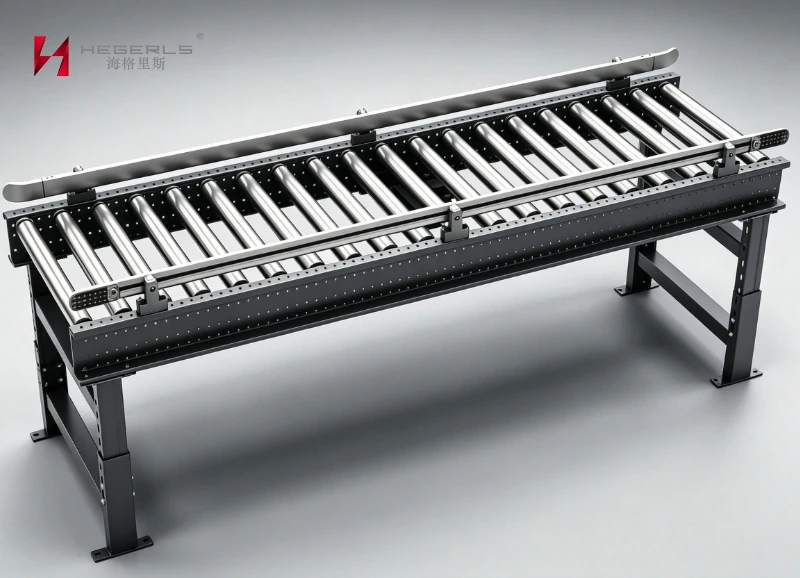

Straight conveying
Inclined conveying

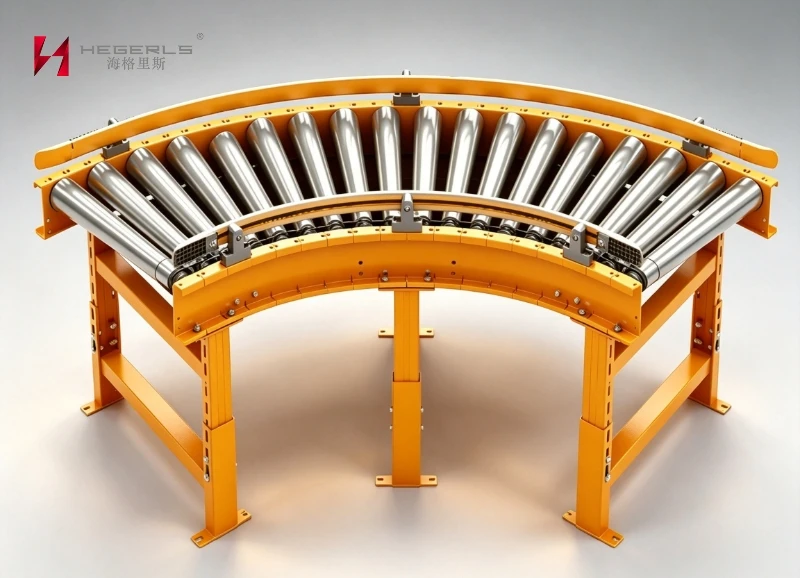

Turning conveying
Multi-section conveying
Accumulation conveying
HEGERLS Roller Conveyor can be seamlessly integrated with:
AS/RS systems
Shuttle storage systems
Sorting equipment
AGVs & robots
WMS/WCS software
Creating complete automated logistics solutions.
The modular design simplifies installation and maintenance.
Features include:
Replaceable components
Easy cleaning
Durable structure
Low maintenance requirements
|
Parameter |
Specification |
|
Equipment Type |
Roller Conveyor System |
|
Application |
Cartons, Packages, Totes, Pallets |
|
Load Capacity |
≤1500kg |
|
Conveyor Speed |
0.5–30m/min |
|
Conveying Direction |
Horizontal / Inclined / Turning |
|
Conveying Mode |
Continuous / Accumulation |
|
Control Mode |
PLC & Frequency Conversion Control |
|
Roller Material |
Steel / Stainless Steel Optional |
|
Application Industries |
Warehouse, Logistics, Manufacturing, Food, Pharmaceutical |
Goods are placed onto the roller conveyor through manual operation, forklift, robot, or upstream automation equipment.↓
Sensors detect product arrival and transmit signals to the control system.↓
Driven rollers transport goods smoothly along the designed route.↓
Products are automatically transferred to the next process, including:
Storage
Picking
Sorting
Production
Shipping
A roller conveyor system is an automated conveying solution that uses powered rollers to transport cartons, pallets, and unit loads efficiently.
Roller conveyors are suitable for cartons, packages, totes, pallets, and industrial containers with different sizes and weights.
HEGERLS Roller Conveyor can support loads up to 1500kg, depending on the conveyor configuration and application requirements.
Yes. Roller conveyors can be integrated with AS/RS, shuttle systems, stacker cranes, robots, and WMS/WCS platforms to create complete automated warehouse solutions.
Yes. HEGERLS Roller Conveyor supports adjustable speeds from 0.5–30m/min through frequency conversion control.
