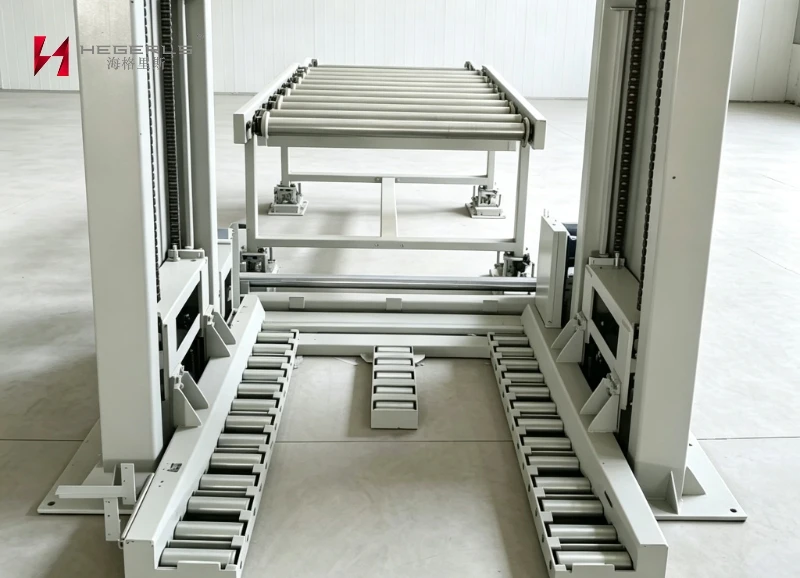

HEGERLS Pallet Truck Elevator is a compact vertical lifting solution designed to enable seamless connection between manual pallet trucks and automated conveyor systems.
Unlike traditional lifting equipment, the Pallet Truck Elevator allows operators to directly load pallets using hand pallet trucks, automatically lifting and transferring goods between different heights. It is widely used as a key transition device in smart warehouses, e-commerce fulfillment centers, cold chain logistics, pharmaceutical storage, and manufacturing facilities.
By reducing manual handling and optimizing vertical space utilization, HEGERLS Pallet Truck Elevator improves warehouse flow efficiency and supports flexible automation upgrades.

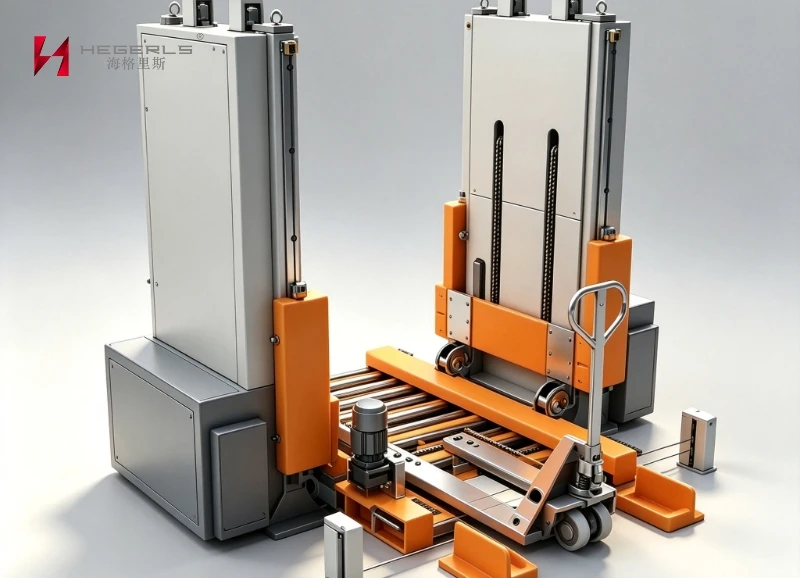

HEGERLS Pallet Truck Elevator adopts a heavy-duty modular structure consisting of:
Lifting platform
Guide rail system
Hydraulic / electric lifting mechanism
Safety protection devices
Position detection sensors
Conveyor interface system
The reinforced steel frame ensures stable operation under continuous warehouse conditions, while the compact design allows easy integration into existing logistics systems.
HEGERLS Pallet Truck Elevator eliminates the need for additional transfer equipment.
Advantages:
Direct pallet loading by hand pallet truck
Reduced manual handling distance
Smooth transition into automated systems
Ideal for warehouses upgrading from traditional handling to automation.
The reinforced structure supports common warehouse pallet applications.
Load range: 1000–2000kg
Suitable for:
FMCG products
Food & beverage
Pharmaceutical materials
Industrial components
Cold storage goods
The compact lifting design helps warehouses overcome height differences between working areas.
Applications:
Multi-level warehouses
Conveyor height adjustment
Loading and unloading platforms
Production line connection
Optimized lifting performance improves warehouse operation efficiency.
Key parameters:
Lifting speed up to 5m/min
Maximum stroke 800mm
Stable continuous operation
Designed for widely used warehouse pallet specifications.
Standard pallet size: 1200 × 1000mm
Can be customized according to:
Pallet dimensions
Load requirements
Conveyor layout
The space-saving structure allows installation in limited areas.
Benefits:
Small footprint
Easy integration
Suitable for retrofit automation projects
|
Specification |
Details |
|
Product Name |
Pallet Truck Elevator |
|
Application |
Pallet Vertical Transfer |
|
Load Capacity |
1000–2000kg |
|
Lifting Speed |
≤5m/min |
|
Lifting Stroke |
800mm |
|
Pallet Compatibility |
1200 × 1000mm |
|
Operation Mode |
Automatic / PLC Control |
|
Structure Material |
Heavy-duty Steel |
|
Transfer Interface |
Conveyor / Manual Pallet Truck |
|
Application Environment |
Warehouse / Factory / Logistics Center |

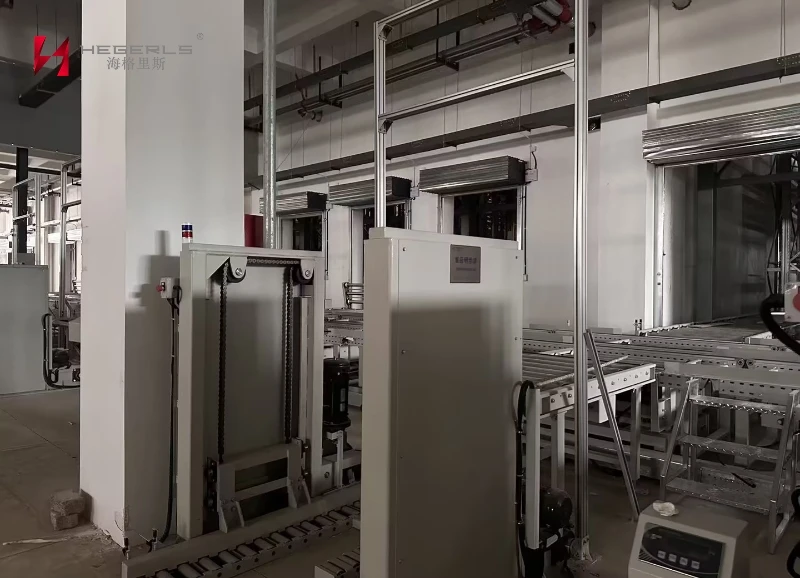

The operator places the pallet onto the elevator platform using a manual pallet truck.
Sensors identify pallet position and confirm lifting conditions.
The lifting mechanism raises the pallet to the designated height.
After reaching the preset position, the pallet automatically transfers to:
Roller conveyor
Chain conveyor
Storage system
The elevator returns automatically and prepares for the next pallet transfer cycle.
A Pallet Truck Elevator is a vertical lifting device designed to connect manual pallet trucks with automated warehouse conveyor systems.
A Pallet Truck Elevator is specifically designed for pallet handling, allowing operators to directly load pallets with hand pallet trucks without additional equipment.
HEGERLS Pallet Truck Elevator supports: 1000–2000kg pallet loads.
Yes. It can connect with roller conveyors, chain conveyors, pallet conveyors, and warehouse automation systems.
