HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System
HEGERLS Pallet Racking System

HEGERLS Pallet Racking System

Flexible Beam-Type Storage Solution for Efficient Pallet Handling and Warehouse Organization

HEGERLS Pallet Racking System is a professional warehouse storage solution designed for palletized goods. Also known as beam-type pallet racking or selective pallet racking, it provides direct access to each pallet position and is widely used in manufacturing, logistics, distribution, food, and industrial warehouses.



With a modular structure composed of upright frames and horizontal beams, HEGERLS pallet racking offers high load capacity, stable performance, and flexible configuration based on pallet dimensions, load requirements, warehouse space, and forklift operations.

Inquire Now Next Product

System Composition

Core Competitive Advantages

Technical Specifications

Working Principle & Process

Industry Solutions

System Composition

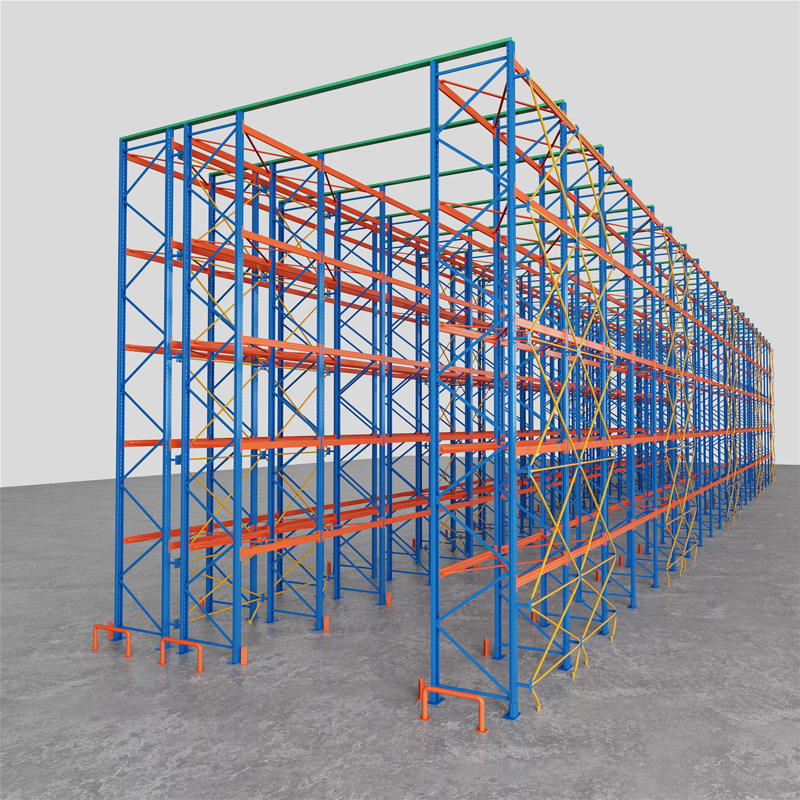

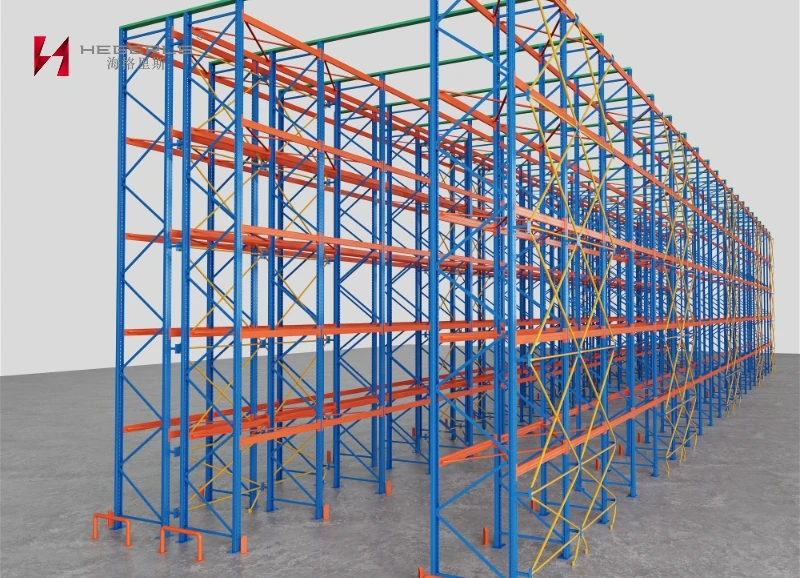

HEGERLS Pallet Racking System adopts a modular steel structure consisting of upright frames, horizontal beams, and safety accessories.

The upright frame is assembled with columns, horizontal braces, and diagonal braces, while beams are connected with secure locking systems to create a stable storage structure.

The flexible design allows beam levels to be adjusted according to different pallet heights and storage requirements.

Main Components:

Upright Frames

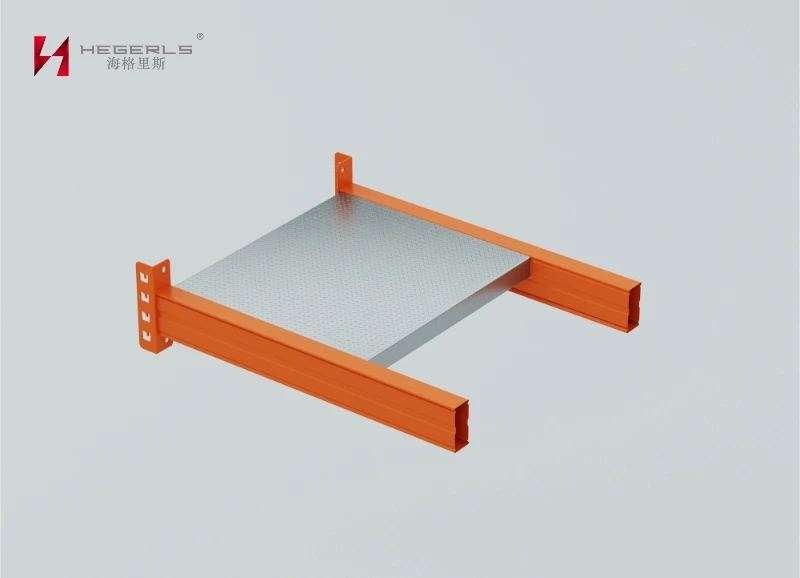

Horizontal Beams

Beam Connectors

Safety Locking Pins

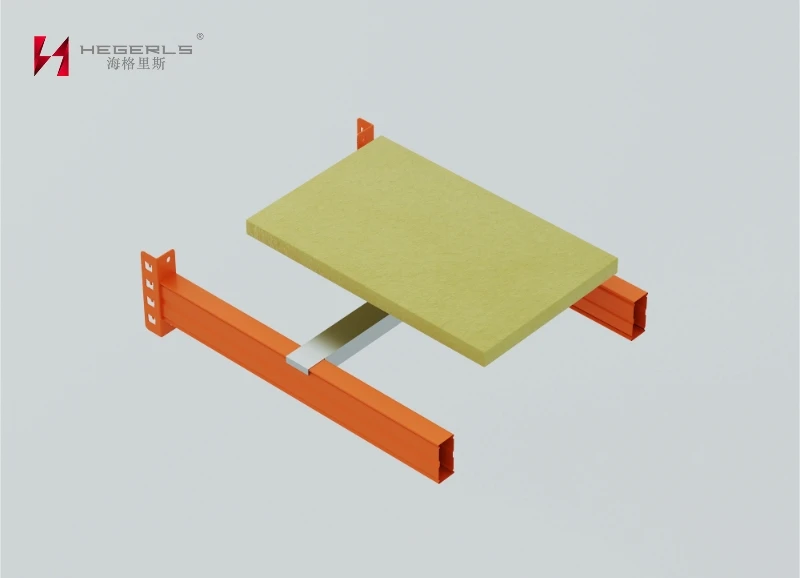

Pallet Support Bars

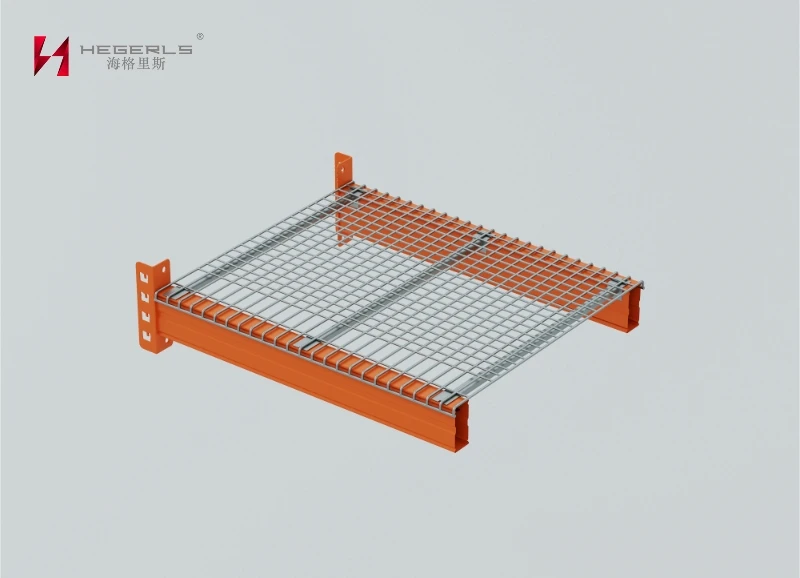

Wire Mesh Decking

Column Protectors

Rack Safety Accessories

Core Competitive Advantages

1
100% Direct Pallet Accessibility

Each pallet position can be accessed independently without moving other pallets, providing excellent flexibility for inventory management and frequent pallet operations.

2
Strong Load Capacity & Stable Structure

The optimized column and beam design provides high load-bearing capability, excellent impact resistance, and long-term operational stability for industrial storage applications.

3
Flexible Height Adjustment

The beam position can be adjusted according to pallet height requirements with standard spacing of 50 mm or 75 mm, maximizing storage flexibility.

4
Easy Installation & Expansion

The modular assembled structure allows fast installation, convenient maintenance, and easy system expansion according to future warehouse requirements.

5
Customized Warehouse Adaptation

HEGERLS designs pallet racking solutions based on:

Pallet size

Load capacity

Warehouse height

Available floor space

Forklift specifications

to achieve optimized storage performance.

6
Compatible with Automation Systems

Besides traditional forklift operations, HEGERLS pallet racking can be integrated with shuttle systems, conveyors, stacker cranes, and AS/RS solutions.

Technical Specifications

Parameter

Specification

Equipment Type

Pallet Racking System

Structure Type

Beam-Type Steel Rack

Application

Palletized Goods Storage

Storage Mode

Selective Pallet Storage

Rack Height

Customized (Up to 16m+)

Beam Adjustment

50mm / 75mm Pitch

Load Capacity

Customized Design

Maximum Layer Load

Up to 5,000 kg / Level

Operation Method

Forklift / Automated Equipment

Material

High-Strength Steel

Surface Treatment

Powder Coating

Working Principle & Process

  • 01
    Pallet Receiving

    Incoming pallets are transported to the warehouse storage area and prepared for storage operations.

  • 02
    Storage Location Assignment

    According to pallet information and warehouse requirements, suitable rack positions are assigned.

  • 03
    Pallet Storage Operation

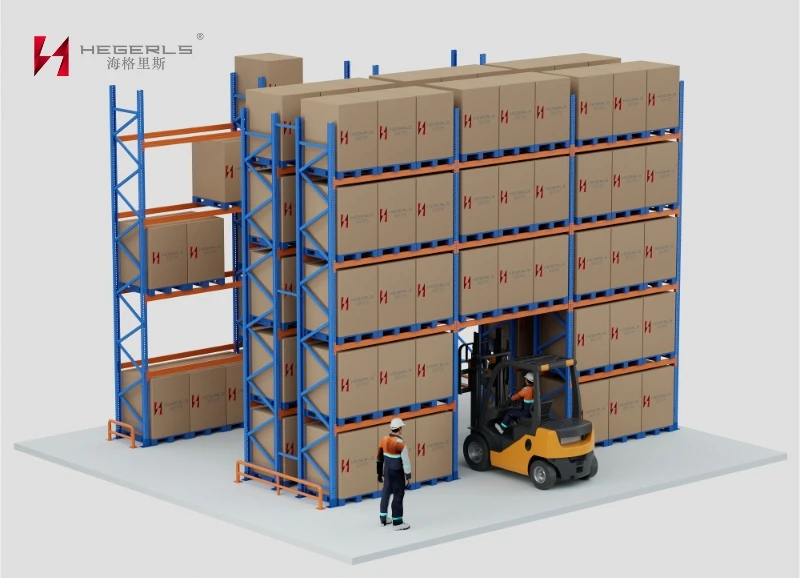

    Forklifts place pallets onto designated rack levels through warehouse aisles.

  • 04
    Pallet Retrieval Operation

    Operators can directly access required pallets without moving other stored goods, ensuring efficient warehouse operations.

HEGERLS Pallet Racking System
Pallet Racking Configuration Options

Selective Pallet Racking

The most common pallet storage solution, offering direct access to every pallet position and maximum operational flexibility.



Narrow Aisle Pallet Racking

Optimized for warehouses requiring higher storage density by reducing forklift aisle width with specialized handling equipment.



Double Deep Pallet Racking

Increases storage density by storing pallets two rows deep while maintaining reasonable accessibility.



Automated Pallet Rack Integration

Designed for integration with:

Shuttle Systems

Stacker Crane AS/RS

Conveyors

Warehouse Control Systems

Related Products
HEGERLS Clad Rack Warehouse
HEGERLS Clad Rack Warehouse
Integrated Rack-Supported Warehouse Solution for High-Bay Automated Storage
HEGERLS High Bay ASRS Racking
HEGERLS High Bay ASRS Racking
Automated High-Bay Storage Rack System for Intelligent Warehouse Automation
HEGERLS Supermarket Shelving System
HEGERLS Supermarket Shelving System
Flexible Retail Display Shelving Solution for Supermarkets & Commercial Stores
HEGERLS Steel Platform System
HEGERLS Steel Platform System
Heavy-Duty Steel Structure Platform for Maximizing Industrial Space Utilization

FAQ

Q1. What is a pallet racking system?

A pallet racking system is a warehouse storage structure designed to store palletized goods. Each pallet occupies an individual storage position for efficient access and inventory management.

Q2. Why is pallet racking widely used in warehouses?

Pallet racking provides simple structure, high reliability, flexible adjustment, direct pallet access, and compatibility with different forklifts, making it one of the most common warehouse storage systems.

Q3. What is the load capacity of HEGERLS pallet racking?

HEGERLS pallet racking can be customized according to pallet weight and warehouse requirements, with heavy-duty designs supporting high load applications.

Q4. Can pallet racking be integrated with automated warehouses?

Yes. HEGERLS pallet racking can be combined with shuttle systems, stacker cranes, conveyors, and WMS/WCS platforms to create automated storage solutions.
