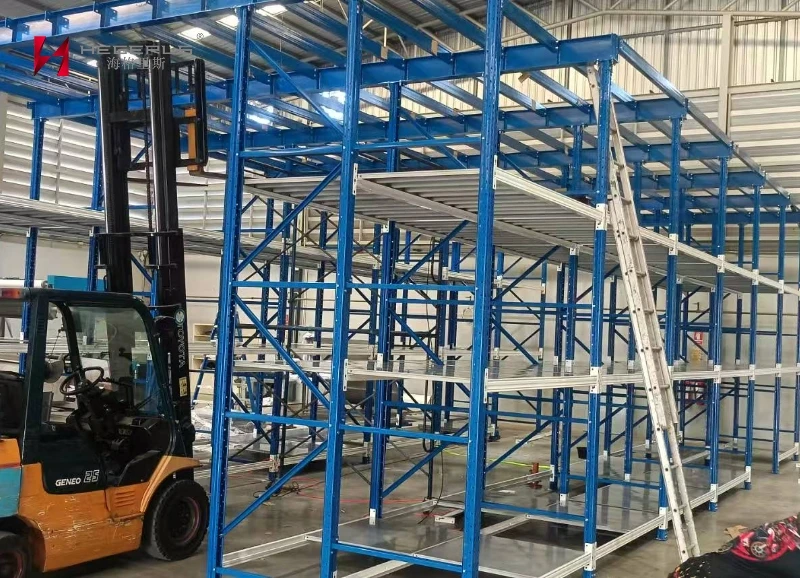

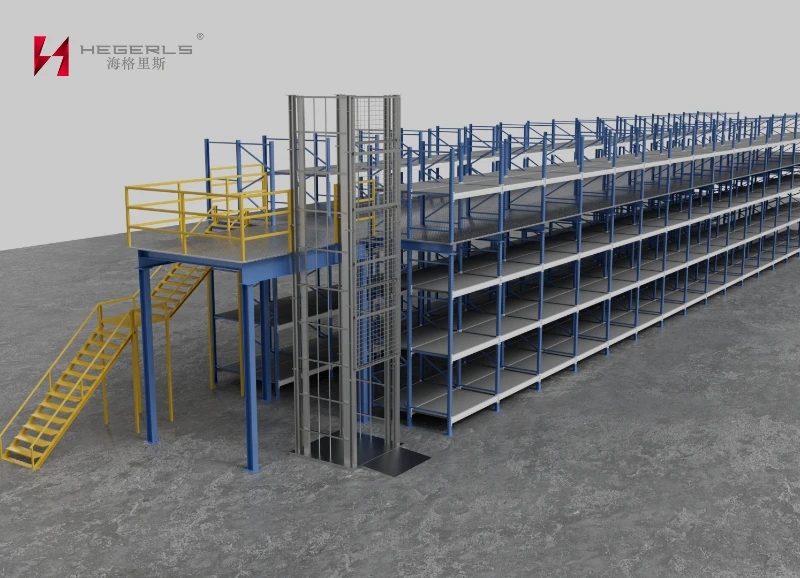

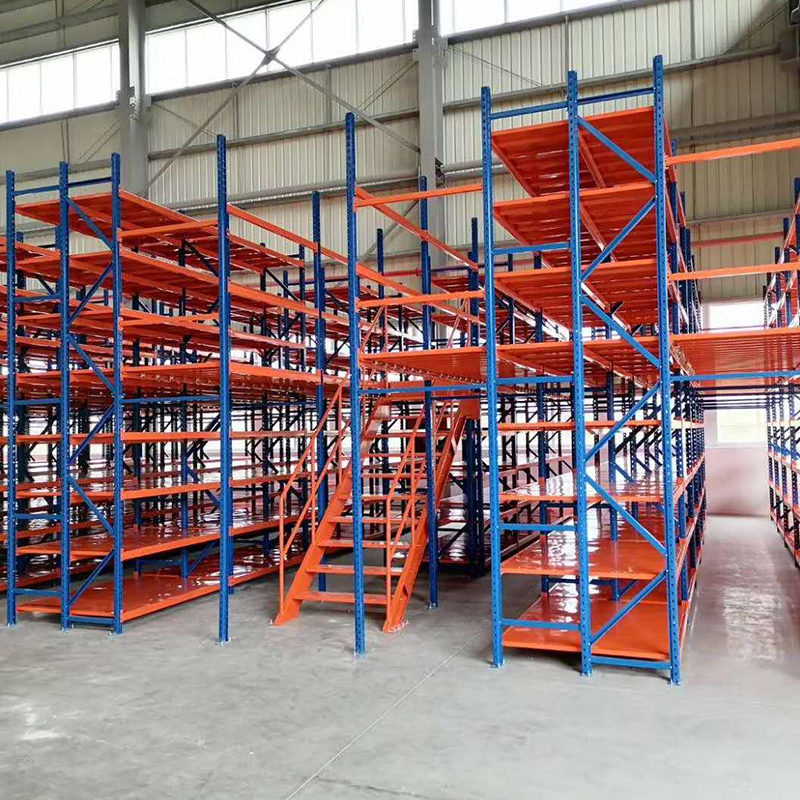

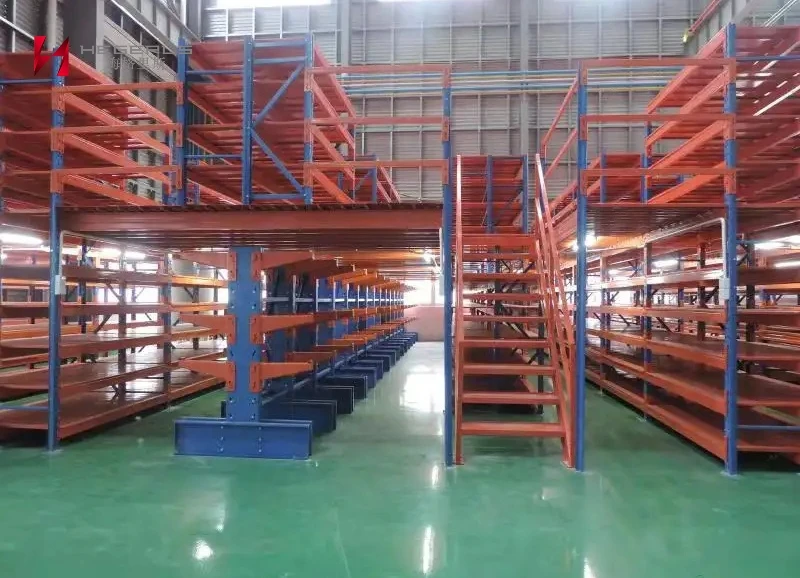

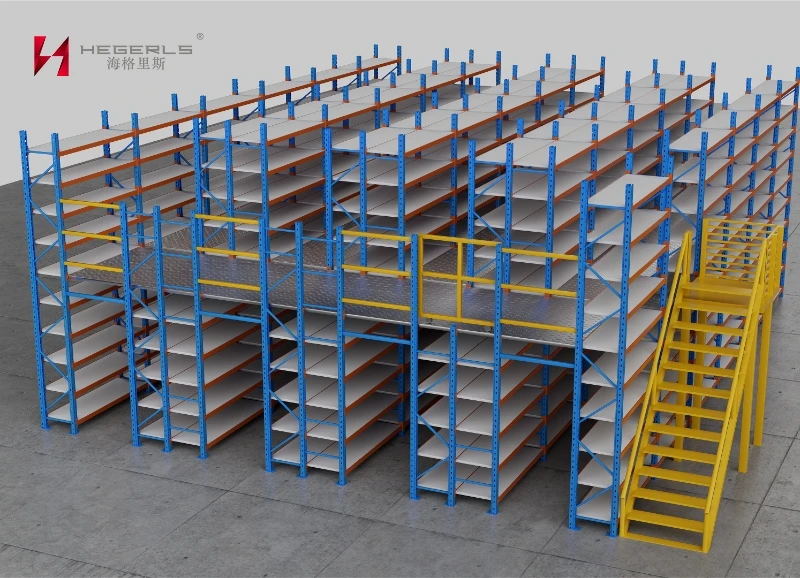

HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System
HEGERLS Mezzanine Racking System

HEGERLS Mezzanine Racking System

Multi-Level Storage Solution for Maximizing Warehouse Vertical Space

HEGERLS Mezzanine Racking System is an innovative multi-level warehouse storage solution designed to maximize available vertical space without expanding the building footprint.



By adding one or more elevated storage platforms above existing warehouse areas, the system effectively increases usable storage capacity and creates additional working levels.



Combining racking structures, steel platforms, stairs, guardrails, and lifting equipment, HEGERLS Mezzanine Racking provides flexible solutions for warehouses requiring high-density storage and efficient manual picking operations.



It is widely used in e-commerce fulfillment centers, manufacturing facilities, spare parts warehouses, logistics centers, and distribution warehouses.

Inquire Now Next Product

System Composition

Core Competitive Advantages

Technical Specifications

Working Principle & Process

Industry Solutions

System Composition

HEGERLS Mezzanine Racking System is a modular structure consisting of storage racks, support columns, beams, floor panels, stairs, handrails, and material handling equipment.

The lower-level racks not only provide storage space but also act as structural supports for the upper mezzanine floors.

The complete system can be customized according to warehouse height, load requirements, and operational processes.

Main Components:

Storage Rack Structure

Steel Support Columns

Main Beams

Secondary Beams

Mezzanine Floor Panels

Stair Systems

Safety Guardrails

Loading Gates

Lifting Platforms

Core Competitive Advantages

1
Maximize Warehouse Vertical Space

Mezzanine Racking makes full use of unused vertical space by creating additional storage floors.

Compared with traditional single-level storage, it significantly increases warehouse capacity without requiring building expansion.

2
Multi-Level Storage Flexibility

HEGERLS Mezzanine Systems can be designed as:

Two-level storage systems

Three-level storage systems

Customized multi-level platforms

Each floor can be independently configured for storage, picking, packing, or production operations.

3
High Space Utilization & Cost Efficiency

By utilizing existing warehouse height, mezzanine systems provide a cost-effective alternative to warehouse expansion.

The system reduces the need for additional building investment while increasing available storage area.

4
Integrated Storage & Picking Operations

The mezzanine structure supports efficient manual operations.

Upper levels can be used for:

Small parts storage

Order picking

Packing stations

Inventory management

Goods can be transferred between floors through:

Lifts

Hydraulic platforms

Conveyors

Manual carts

5
Flexible Modular Design

HEGERLS Mezzanine Racking adopts a bolt-connected modular structure.

Advantages include:

Easy installation

Simple modification

Flexible expansion

Customized layout

The system can be adjusted according to future warehouse development.

6
Strong Structure & Reliable Safety

The system uses high-quality steel components with optimized structural design.

Features include:

Strong load-bearing capacity

Stable platform structure

Safety guardrails

Anti-slip flooring options

Ensuring safe operation under long-term use.

Technical Specifications

Parameter

Specification

Product Type

Mezzanine Racking System

Alternative Name

Warehouse Mezzanine Floor

Structure

Rack Supported Platform

Levels

2–3 Floors (Customized)

Application

Storage / Picking / Working Area

Load Capacity

Customized

Floor Material

Steel Plate / Grating / Composite Panel

Access Method

Stair / Lift / Conveyor

Operation Mode

Manual Handling

Installation

Modular Assembly

Working Principle & Process

  • 01
    Warehouse Space Assessment

    Engineers analyze warehouse height, floor conditions, storage requirements, and operational processes.

  • 02
    Structural Design

    The mezzanine structure is customized according to:

    Storage load

    Floor levels

    Material flow

    Handling equipment

  • 03
    Multi-Level Installation

    Steel columns, beams, racks, and floor panels are assembled to create additional storage platforms.

  • 04
    Storage & Operation

    Products are stored, picked, packed, or processed across different levels.

HEGERLS Mezzanine Racking System
Mezzanine Racking Configuration Options

Rack Supported Mezzanine

Uses pallet racks or shelving systems as structural supports.

Suitable for storage-intensive applications.



Steel Structure Mezzanine

Independent steel frame structure designed for heavy loads and large areas.



Multi-Tier Picking Mezzanine

Designed for high SKU warehouses requiring manual picking on multiple levels.



Automated Mezzanine System

Integrated with:

Conveyors

ASRS

Robots

Warehouse Management Systems

for intelligent warehouse operations.

Related Products
HEGERLS Clad Rack Warehouse
HEGERLS Clad Rack Warehouse
Integrated Rack-Supported Warehouse Solution for High-Bay Automated Storage
HEGERLS High Bay ASRS Racking
HEGERLS High Bay ASRS Racking
Automated High-Bay Storage Rack System for Intelligent Warehouse Automation
HEGERLS Supermarket Shelving System
HEGERLS Supermarket Shelving System
Flexible Retail Display Shelving Solution for Supermarkets & Commercial Stores
HEGERLS Steel Platform System
HEGERLS Steel Platform System
Heavy-Duty Steel Structure Platform for Maximizing Industrial Space Utilization

FAQ

Q1. What is a mezzanine racking system?

A mezzanine racking system is a multi-level storage structure that creates additional floors inside an existing warehouse to increase storage capacity.

Q2. How does mezzanine racking improve warehouse space utilization?

It uses unused vertical space to create additional storage levels without increasing the warehouse footprint.

Q3. What products are suitable for mezzanine storage?

It is suitable for small and medium-sized goods, spare parts, cartons, components, and manually picked inventory.

Q4. How many levels can a mezzanine system have?

HEGERLS mezzanine systems can be designed with two, three, or customized multiple levels according to warehouse conditions.

Q5. Can mezzanine systems integrate with automation equipment?

Yes. They can be combined with conveyors, lifts, ASRS equipment, and warehouse management systems.
