HEGERLS Warehouse Automation Solutions & High-Density Storage Systems

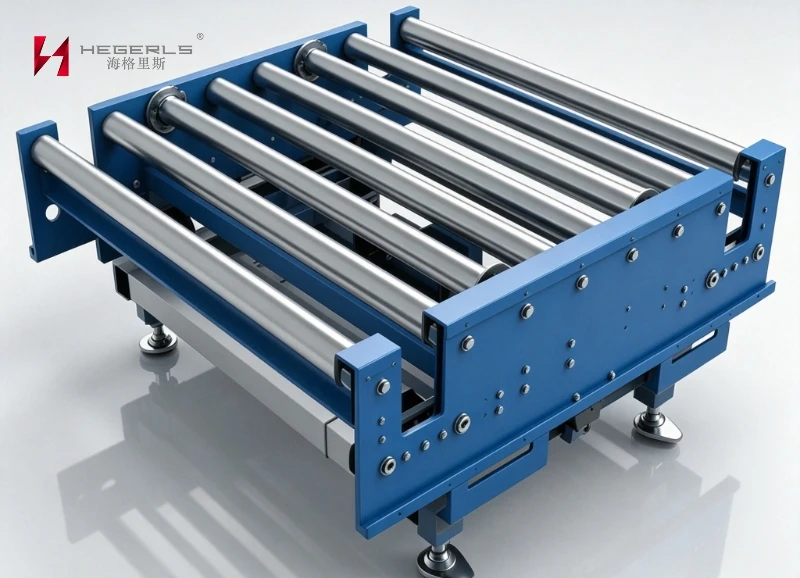

HEGERLS Lift Transfer Unit (LTU) is a high-efficiency transfer device designed for automated conveyor systems, enabling precise 90° direction change, merging, diverting, and product sorting operations.
By combining vertical lifting and horizontal transfer functions, the Lift Transfer Unit helps optimize complex conveyor layouts while improving material flow efficiency in limited spaces.
With compact structure, high load capacity, and flexible integration capability, it is widely used in automated warehouses, e-commerce sorting centers, manufacturing logistics lines, and intelligent distribution systems.
HEGERLS Lift Transfer Unit adopts a modular integrated structure consisting of a lifting mechanism, transfer module, drive system, and intelligent control components.
The system is designed to achieve smooth 90° transfer, merging, diverting, and positioning operations within automated conveyor systems, ensuring accurate material handling in compact warehouse layouts.
Different lifting strokes, transfer modules, and control configurations can be selected according to load capacity, conveyor layout, material type, and automation requirements.
Lifting Mechanism
Transfer Module
Drive System
Motor & Transmission Components
Control System
Sensors & Detection Devices
Positioning & Safety Components
WMS/WCS Communication Interfaces

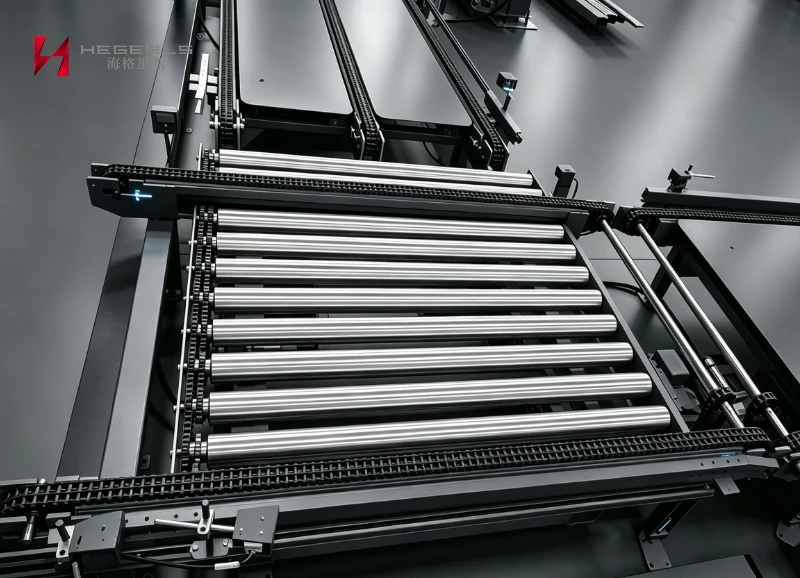

HEGERLS Lift Transfer Unit enables fast and accurate right-angle transfer between conveyor lines.
It effectively supports:
Conveyor line intersection
Product diversion
Merging operations
Automatic sorting
Optimizing warehouse and production logistics layouts.
Designed for high-speed automated logistics systems, the Lift Transfer Unit provides efficient material handling capability.
Maximum throughput: Up to 1,800 cartons/hour
Suitable for high-volume distribution and sorting operations.
The reinforced mechanical structure provides reliable performance for heavy-duty applications.
Maximum load: ≤1500kg
Ensuring stable transportation of pallets and large containers.
The space-saving design allows installation in areas with limited space.
Advantages:
Reduced equipment footprint
Flexible system layout
High-density production line adaptation
The lifting mechanism provides adjustable vertical movement.
Lifting stroke: 50–100mm
Allowing compatibility with different conveyor heights and system designs.
HEGERLS Lift Transfer Unit can be integrated with complete warehouse automation systems.
Compatible with:
Roller Conveyor
Chain Conveyor
Sorting System
AS/RS
WMS/WCS
|
Specification |
Details |
|
Equipment Type |
Lift Transfer Unit |
|
Main Function |
90° Transfer / Diverting / Merging |
|
Application |
Cartons, Totes, Pallets |
|
Maximum Throughput |
1,800 cartons/hour |
|
Maximum Load Capacity |
≤1500kg |
|
Lifting Stroke |
50–100mm |
|
Transfer Direction |
90° Horizontal Transfer |
|
Control System |
PLC Control |
|
Integration |
Conveyor System / WMS / WCS |
|
Structure Type |
Compact Modular Design |
Sensors detect incoming goods and identify transfer requirements.
The lifting mechanism raises the transfer module to the required conveyor height.
The conveyor module moves the goods horizontally and completes a 90° transfer.↓
After completing the transfer, the lifting unit returns to the original position.↓
Goods continue to the next process:
Storage
Sorting
Picking
Production
Shipping
A Lift Transfer Unit is an automated conveyor device that combines vertical lifting and horizontal transfer functions to achieve 90° product movement between conveyor lines.
The standard system supports loads up to 1500kg, suitable for cartons, totes, and pallet handling applications.
The system can achieve throughput up to 1,800 cartons/hour, depending on product type and system configuration.
It is commonly applied in:
Automated warehouses
E-commerce sorting centers
Manufacturing production lines
Distribution logistics systems
Yes. HEGERLS Lift Transfer Unit supports integration with WMS, WCS, PLC, and other automation control systems.
