HEGERLS Warehouse Automation Solutions & High-Density Storage Systems

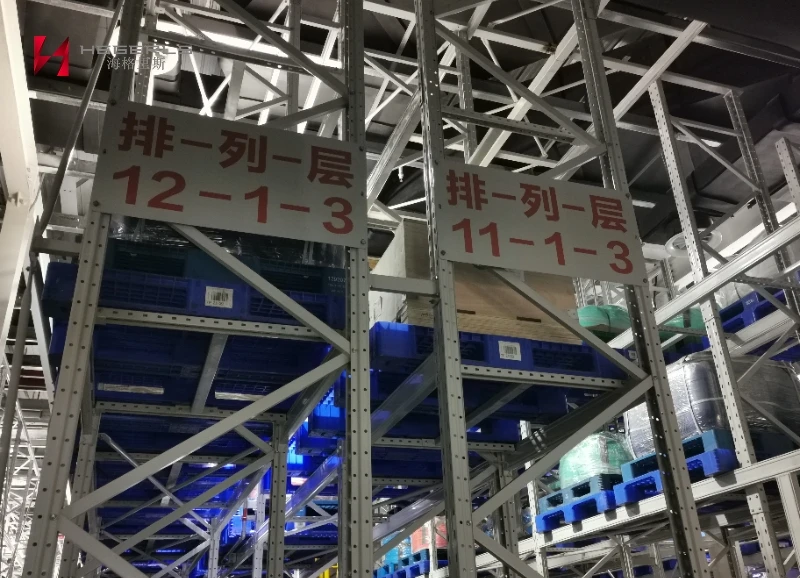

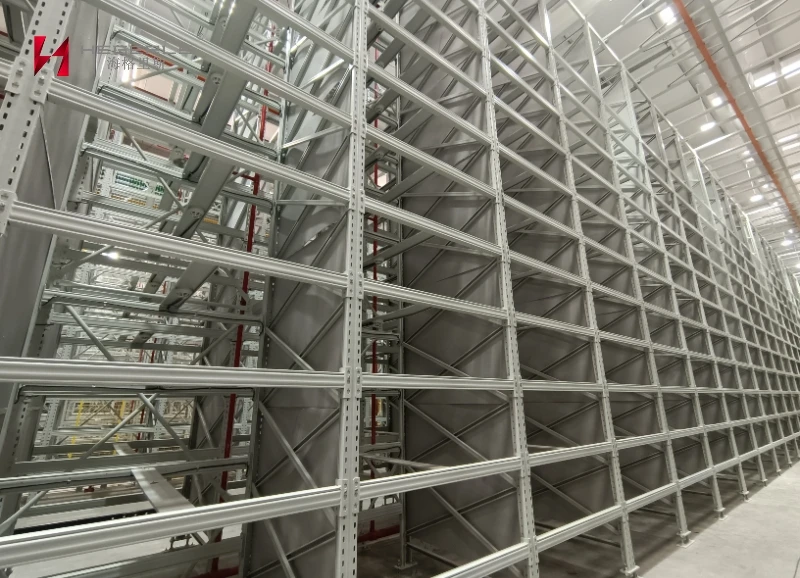

HEGERLS High Bay ASRS Racking is a core storage structure designed for Automated Storage and Retrieval System (ASRS) warehouses, providing high-density storage solutions for modern intelligent logistics centers.
Unlike conventional pallet racking systems, high-bay ASRS racking is engineered to work together with automated equipment such as stacker cranes, shuttle systems, conveyors, and warehouse control software. The system maximizes vertical storage capacity while ensuring accurate, stable, and efficient automated storage and retrieval operations.
According to different storage requirements, HEGERLS provides customized ASRS racking solutions including pallet ASRS racks, shuttle ASRS racks, and high-density automated storage systems.
With optimized structural design, high-quality steel materials, and strict manufacturing processes, HEGERLS High Bay ASRS Racking helps enterprises improve warehouse space utilization, reduce labor dependency, and build efficient smart warehouse environments.
HEGERLS High Bay ASRS Racking System adopts a modular structure consisting of high-bay rack structures, pallets, automated storage equipment, conveyor systems, and warehouse control systems.
The integrated design ensures stable operation, precise storage positioning, and seamless connection with automated warehouse systems.
Main Components:
High-Bay Racking Structure
Pallet / Storage Unit
ASRS Stacker Crane System
Conveyor & Transfer Equipment
AGV / AMR Handling System
WMS/WCS Control System
Safety Protection Components
High Bay ASRS Racking fully utilizes vertical warehouse space and significantly increases storage density.
Storage height can reach over 45 meters depending on warehouse design
Utilizes vertical space instead of expanding warehouse footprint
Storage capacity increased compared with traditional warehouses
Ideal solution for land-cost-sensitive locations
Designed specifically for automated warehouses, ASRS racking works perfectly with intelligent handling equipment.
Compatible with stacker cranes
Supports shuttle-based ASRS systems
Integrated with conveyor systems
Connects with WMS/WCS software platforms
The rack structure is engineered for continuous automated operation under heavy loads.
High-strength cold-formed steel structure
Precise component manufacturing
Stable performance under high-frequency operation
Suitable for palletized goods and heavy-duty storage
Automated storage and retrieval significantly improves operational performance.
Faster inbound and outbound processes
Reduced manual handling requirements
Accurate inventory management
Supports 24/7 warehouse operation
HEGERLS provides customized ASRS rack solutions based on warehouse conditions and operational requirements.
Customized rack height and depth
Different pallet load capacities available
Flexible layout design
Suitable for various industries and applications
HEGERLS controls every production stage to ensure long-term system reliability.
Strict raw material inspection
Advanced manufacturing technology
Professional quality testing
Installation guidance and project support
|
Parameter |
Specification |
|
Product Type |
High Bay ASRS Racking System |
|
Application |
Automated Storage and Retrieval Warehouse |
|
Rack Structure |
Pallet Rack / Shuttle Rack / Customized Rack |
|
Storage Height |
Up to 45m+ (Customized) |
|
Load Capacity |
Customized according to project requirements |
|
Storage Unit |
Pallet / Container / Special Storage Unit |
|
Rack Material |
High-strength steel |
|
Surface Treatment |
Powder Coating / Anti-corrosion Treatment |
|
Compatible Equipment |
Stacker Crane, Shuttle, Conveyor, AGV |
|
Control System |
WMS / WCS Integration |
|
Operation Mode |
Automatic Storage & Retrieval |
The WMS receives storage or retrieval tasks and sends instructions to the control system.
Conveyors or AGV systems transport pallets to the ASRS workstation.
The stacker crane or shuttle system moves along storage aisles and places goods into assigned rack locations.
When goods are required, the system automatically retrieves the target pallet.
The system continuously monitors inventory and equipment status.
High Bay ASRS Racking is a specially designed storage rack system used in automated storage and retrieval warehouses. It works with stacker cranes, shuttle systems, conveyors, and warehouse software to achieve automatic storage and retrieval.
Depending on warehouse design and equipment configuration, high-bay ASRS racks can reach more than 45 meters in height, significantly improving vertical space utilization.
ASRS racking is mainly used for palletized goods, including raw materials, finished products, food & beverage products, automotive components, and industrial goods.
Traditional pallet racking relies mainly on manual forklifts, while ASRS racking integrates automated equipment and software systems to achieve faster, more accurate, and higher-density storage operations.
HEGERLS provides complete ASRS solutions from rack manufacturing to system integration, supported by professional design, advanced production technology, strict quality control, and installation services.
