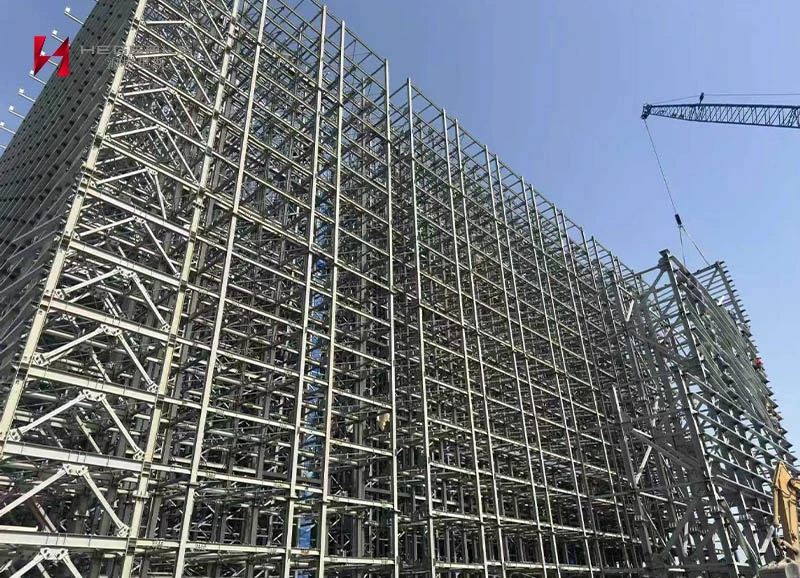

HEGERLS Clad Rack Warehouse, also known as Rack Supported Warehouse or Self-Supporting Warehouse, is an advanced warehouse construction solution where the storage rack system serves as the main structural support for the building.
By integrating racking structure, roof, wall panels, and automated storage equipment, clad rack warehouses maximize vertical space utilization and reduce traditional building requirements.
Designed for large-scale logistics centers, manufacturing facilities, cold chain warehouses, and automated distribution centers, HEGERLS provides customized rack-supported warehouse solutions with heights exceeding 45 meters.

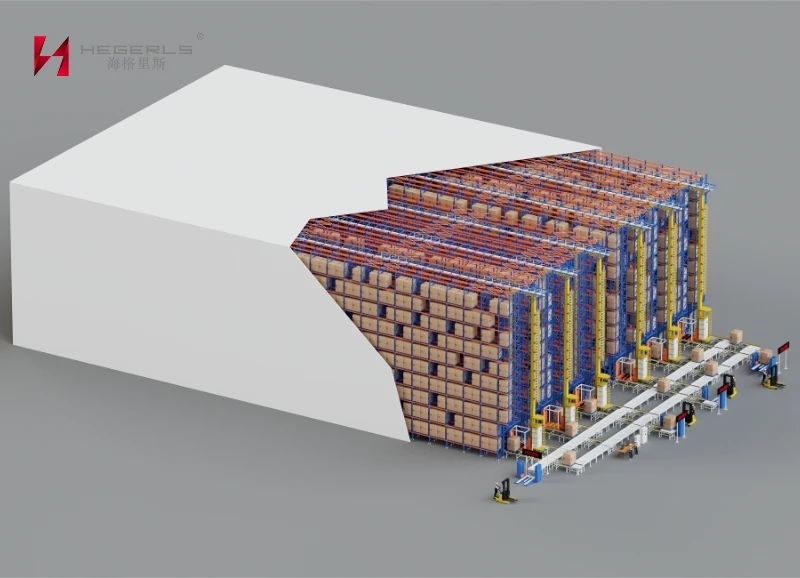

HEGERLS Clad Rack Warehouse integrates the warehouse building structure and storage system into one complete solution.
Unlike conventional warehouses that install racks inside a finished building, the rack structure itself supports the roof and wall enclosure, creating a highly efficient and space-saving warehouse design.
Main Components:
Rack Supported Structure
Upright Frames & Beams
Roof System
Wall Cladding Panels
Flooring System
Automated Storage Equipment
Conveyor System
WMS/WCS Control System
The rack-supported design allows warehouses to reach extreme heights, making full use of available vertical space.
HEGERLS clad rack warehouses can support high-bay storage applications up to 45 meters, significantly increasing storage capacity within limited land areas.
The rack system functions as both a storage structure and the main support structure of the warehouse.
This integrated design reduces construction complexity and improves overall project efficiency.
Designed for integration with:
Stacker Crane AS/RS
Four-Way Shuttle System
Shuttle Racking
Conveyor Systems
The solution enables fully automated storage and retrieval operations.
By combining warehouse building and rack structures, clad rack warehouses reduce material usage, shorten construction periods, and optimize total project investment.
HEGERLS provides customized solutions based on:
Warehouse height
Storage capacity
Temperature requirements
Throughput demand
Automation level
The optimized steel structure provides excellent load-bearing capacity, wind resistance, and seismic performance, ensuring reliable warehouse operation.
|
Parameter |
Specification |
|
Product Type |
Clad Rack Warehouse |
|
Alternative Name |
Rack Supported Warehouse |
|
Structure Type |
Self-Supporting Steel Rack Structure |
|
Warehouse Height |
Up to 45m+ |
|
Storage Type |
Pallet / Tote / Automated Storage |
|
Load Capacity |
Customized |
|
Rack System |
Pallet Rack / Shuttle Rack / AS/RS Rack |
|
Automation Integration |
Stacker Crane / Shuttle / Conveyor |
|
Building Structure |
Rack + Roof + Wall Integration |
|
Control System |
WMS / WCS Integration |
HEGERLS analyzes warehouse dimensions, storage requirements, throughput targets, and automation needs to develop an optimized solution.

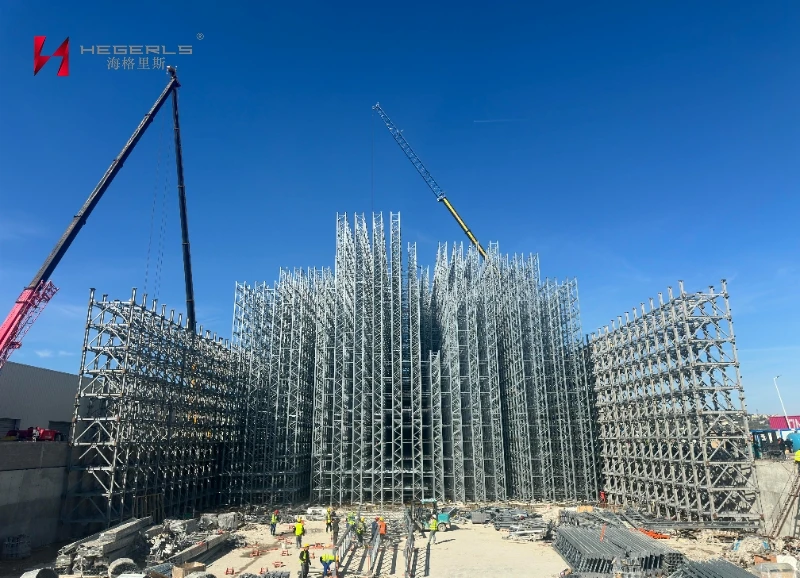

The rack system is installed first and acts as the main supporting structure for the warehouse building.
Roof panels, wall panels, and other building components are installed onto the rack-supported structure.
Storage equipment such as stacker cranes, shuttle vehicles, conveyors, and control systems are integrated to complete the automated warehouse.
Integrated with stacker cranes for fully automated high-bay pallet storage.
Combines rack-supported structures with shuttle vehicles for high-density pallet storage.
Designed specifically for temperature-controlled environments with optimized insulation solutions.

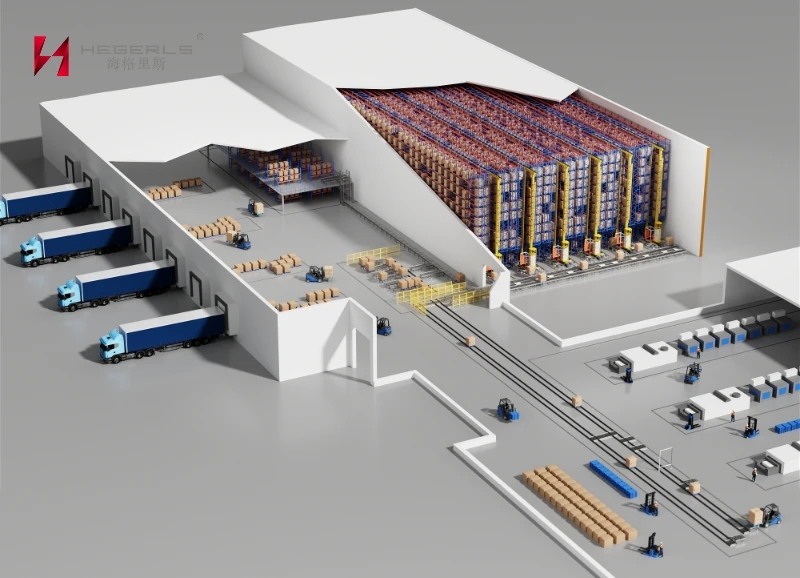

A large-scale automated storage solution utilizing vertical warehouse space.
Widely applicable to scenarios requiring high density, low temperature, and high-precision inventory management:
Morocco Tire Industry Rack-Supported Automated Warehouse Project
A clad rack warehouse is a self-supporting warehouse structure where the storage rack system supports the roof and walls, combining warehouse construction and storage systems into one integrated solution.
Rack supported warehouses maximize storage height, improve land utilization, reduce construction requirements, and are ideal for automated high-density storage.
HEGERLS rack supported warehouses can reach heights exceeding 45 meters, depending on project requirements and local regulations.
They can integrate stacker cranes, four-way shuttle systems, conveyors, WMS, and WCS platforms to create fully automated warehouses.
Yes. Rack-supported structures are widely used in cold chain warehouses because they maximize storage density and optimize building utilization.
