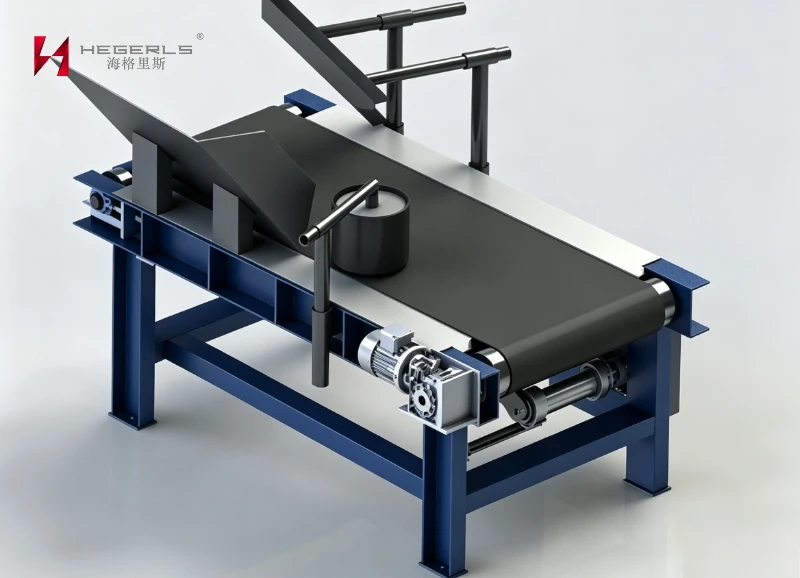

HEGERLS Conveyor Flipper is an automated turning equipment designed for 180° flipping operations of pallets, metal sheets, workpieces, and industrial materials.
By integrating a robust steel structure, precise positioning control, and flexible load handling capability, the Conveyor Flipper enables fast and reliable material orientation changes in automated production and logistics processes.
It is widely used in automotive manufacturing, metal processing, warehousing logistics, pallet handling, and intelligent production lines, helping companies achieve standardized, automated, and efficient material turnover operations.
HEGERLS Conveyor Flipper adopts a modular integrated structure consisting of a high-strength frame, rotation mechanism, drive system, precision positioning components, and intelligent control unit.
The system is designed for automatic 180° material flipping operations, enabling stable and accurate orientation changes for pallets, panels, and industrial components in manufacturing and logistics processes.
Different load capacities, rotation angles, and control configurations can be customized according to material dimensions, production requirements, and automation system integration needs.
High-Strength Steel Frame
Rotation Mechanism
Drive System
Precision Positioning System
Intelligent Control System
Sensors & Detection Devices
Safety Protection Components
PLC/MES/WMS/WCS Communication Interfaces
Designed for industrial material turning applications, the Conveyor Flipper completes full 180° rotation efficiently.
Suitable for:
Material surface change
Pallet direction conversion
Workpiece turning
Assembly process adjustment
The heavy-duty structure supports different industrial applications.
Load capacity: 0.5–100 tons
Customized designs are available according to:
Material dimensions
Weight requirements
Production environment
The advanced positioning system ensures accurate material orientation after rotation.
Advantages:
Positioning accuracy up to ±0.5°
Reduced manual adjustment
Improved production consistency
The flipping cycle can be adjusted according to different production requirements.
Cycle time: 10–60 seconds
Suitable for:
High-speed production lines
Heavy-duty processing operations
Flexible manufacturing systems
The optimized mechanical structure ensures smooth operation during heavy-load turning.
Benefits:
Reduced impact force
Improved equipment lifespan
Safe material handling
HEGERLS provides customized Conveyor Flipper solutions based on different industries and layouts.
Supports integration with:
Conveyor lines
AGV systems
Automated warehouses
Production automation systems
|
Specification |
Details |
|
Equipment Type |
Conveyor Flipper |
|
Main Function |
180° Material Turning |
|
Application Materials |
Pallets / Plates / Workpieces |
|
Rotation Angle |
180° Fixed Rotation |
|
Positioning Accuracy |
±0.5° |
|
Load Capacity |
0.5–100 Tons |
|
Cycle Time |
10–60 Seconds Adjustable |
|
Structure Material |
Heavy-duty Steel Frame |
|
Control Mode |
PLC Automatic Control |
|
Integration |
Conveyor / MES / WMS / WCS |
The workpiece, pallet, or material enters the Conveyor Flipper through the connected conveyor system.
Sensors detect the material position and confirm the flipping operation requirements.
The driving mechanism securely holds the material and performs a controlled 180° rotation.
The system completes rotation and stops at the preset position with high accuracy.
The flipped material continues to the next process:
Assembly
Processing
Storage
Sorting
Packaging
A Conveyor Flipper is an automated turning device designed to rotate pallets, plates, and industrial workpieces by 180° for orientation conversion and processing requirements.
It can handle:
Metal sheets
Pallets
Industrial components
Automotive parts
Heavy workpieces
HEGERLS Conveyor Flipper supports customized load capacities from 0.5 tons to 100 tons.
The system provides high-precision positioning with accuracy up to ±0.5°, ensuring consistent material orientation.
Yes. It can be integrated with conveyor lines, PLC systems, MES, WMS, and WCS platforms for complete automation solutions.
