HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System
HEGERLS Cantilever Rack System

HEGERLS Cantilever Rack System

Flexible Storage Solution for Long, Heavy and Irregular Materials

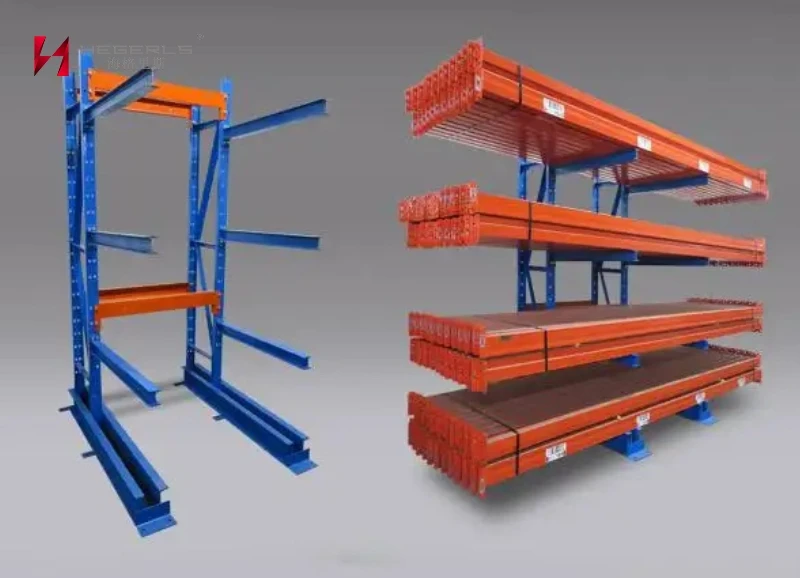

HEGERLS Cantilever Rack System is a specialized storage solution designed for long, oversized, and irregular-shaped materials that cannot be efficiently stored on conventional pallet racks.



Featuring a strong upright structure with adjustable cantilever arms, the system provides open-front storage without vertical obstructions, allowing easy loading and unloading of long products.



Widely used for storing pipes, steel bars, lumber, metal sheets, profiles, furniture materials, and other long goods, HEGERLS Cantilever Racking delivers excellent load capacity, flexibility, and space utilization for industrial warehouses.

Inquire Now Next Product

System Composition

Core Competitive Advantages

Technical Specifications

Working Principle & Process

Industry Solutions

System Composition

HEGERLS Cantilever Rack System consists of vertical columns, cantilever arms, bases, braces, and safety accessories.

The cantilever arms are connected to the upright columns through bolted or pin connections, allowing flexible height adjustment according to different material sizes.

The system can be configured as single-sided or double-sided cantilever racks according to warehouse layout and storage requirements.

Main Components:

Upright Columns

Cantilever Arms

Base Structure

Horizontal Bracing

Diagonal Bracing

Arm Locking Pins

Floor Anchors

Material Support Accessories

Core Competitive Advantages

1
Ideal Storage for Long & Irregular Materials

Cantilever Rack eliminates front columns and vertical obstacles, providing full access to stored materials.

It is specially designed for:

Pipes

Steel profiles

Lumber

Aluminum materials

Panels

Long components

Irregular goods

2
Open Front Design for Easy Handling

The open storage structure allows forklifts, cranes, and manual operators to easily load and retrieve long materials.

Compared with traditional shelving systems, cantilever racks provide better visibility and faster handling efficiency.

3
High Load Capacity & Structural Stability

HEGERLS Cantilever Rack uses reinforced steel columns and high-strength arms to support heavy industrial materials.

The specially designed upright structure provides:

High bending resistance

Strong stability

Long service life

Single cantilever arm capacity can reach up to 500 kg, while reinforced systems can support heavier applications.

4
Adjustable Storage Configuration

Cantilever arms can be adjusted vertically according to storage requirements.

The standard hole spacing allows flexible positioning, making the rack suitable for different material lengths and sizes.

5
Single-Sided & Double-Sided Options

HEGERLS provides:

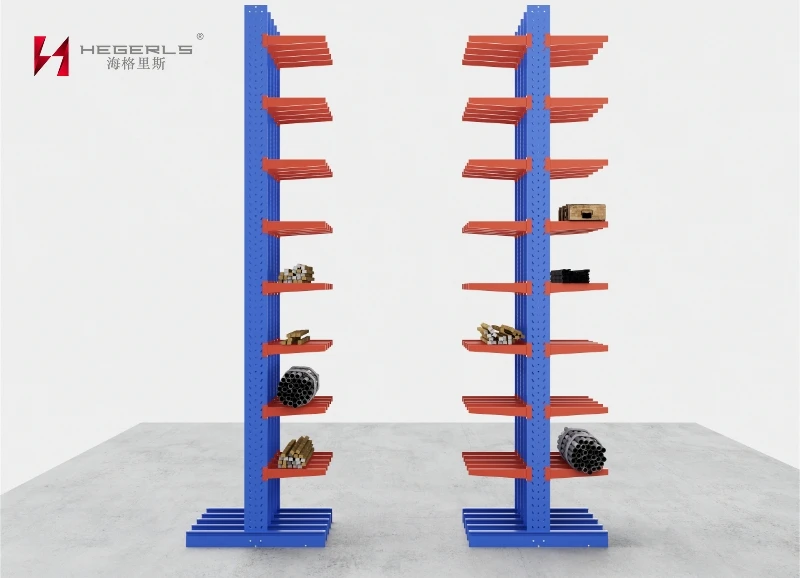

Single-Sided Cantilever Rack

Suitable for installation against walls or limited-space areas.

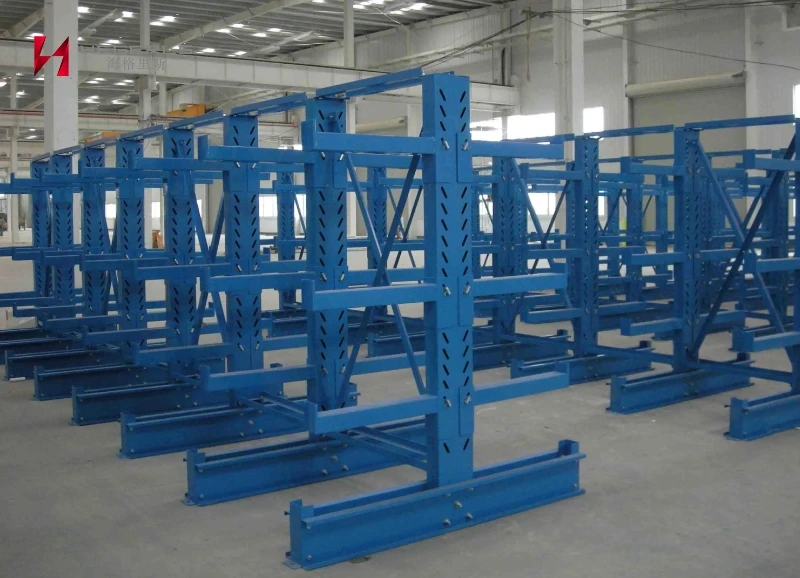

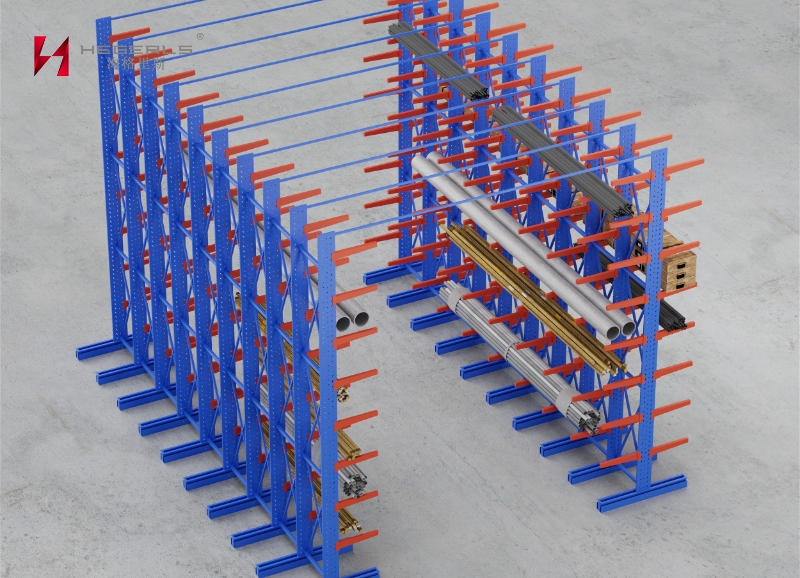

Double-Sided Cantilever Rack

Provides access from both sides and maximizes warehouse utilization.

6
Customized Heavy-Duty Solutions

HEGERLS designs cantilever racks according to:

Material length

Material weight

Storage height

Handling equipment

Warehouse layout

Providing optimized solutions for different industries.

Technical Specifications

Parameter

Specification

Product Type

Cantilever Rack System

Application

Long Material Storage

Storage Goods

Pipes / Lumber / Steel / Panels

Structure

Upright + Cantilever Arms

Configuration

Single Side / Double Side

Arm Adjustment

Adjustable

Arm Capacity

Up to 500 kg / Arm

Upright Capacity

Customized

Rack Height

Customized

Operation Method

Forklift / Crane / Manual

Surface Treatment

Powder Coating

Working Principle & Process

  • 01
    Material Receiving

    Long materials are transported into the warehouse storage area.

  • 02
    Storage Position Allocation

    Materials are assigned to suitable cantilever levels according to length, weight, and usage frequency.

  • 03
    Loading Operation

    Forklifts, cranes, or manual handling equipment place materials onto cantilever arms.

  • 04
    Material Retrieval

    Operators directly access required materials without removing other stored items.

HEGERLS Cantilever Rack System
Cantilever Rack Configuration Options

Light Duty Cantilever Rack

Designed for lightweight materials such as small pipes, profiles, and panels.

Medium Duty Cantilever Rack

Suitable for industrial warehouses requiring balanced capacity and flexibility.

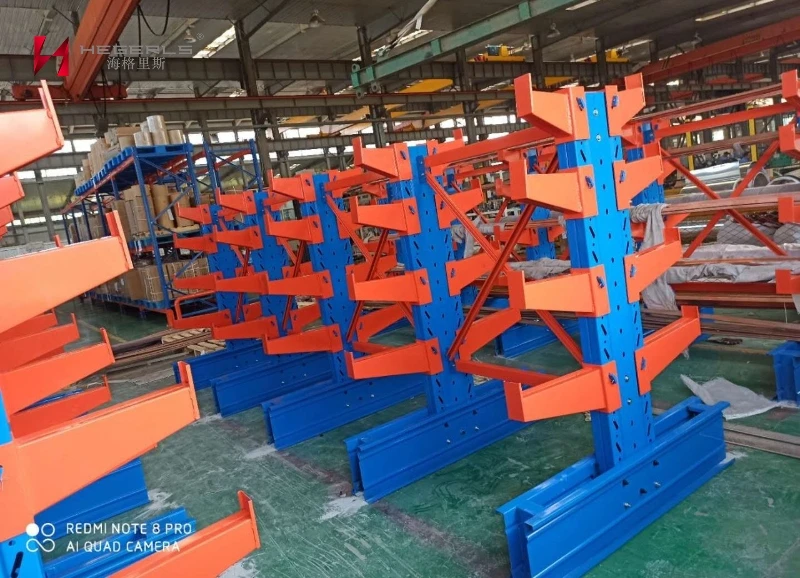

Heavy Duty Cantilever Rack

Designed for heavy materials including steel products, large pipes, and construction materials.

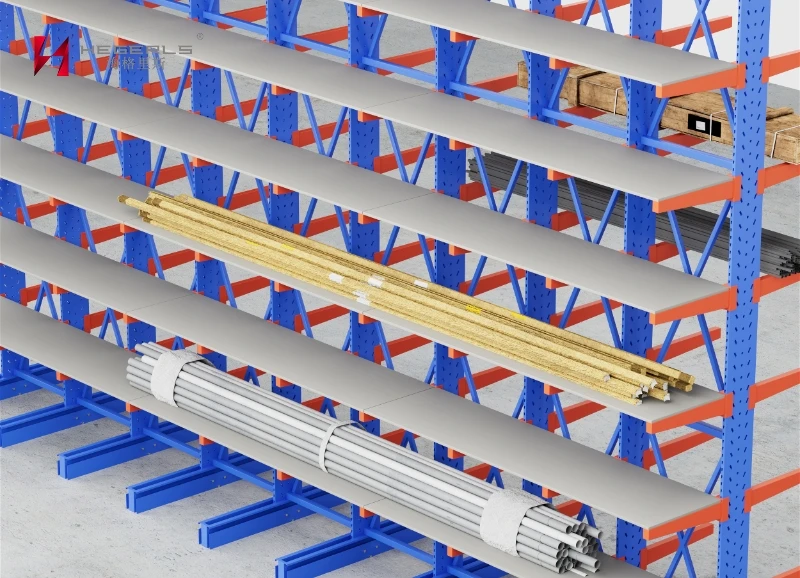

Cantilever Rack with Shelves

Adding decking panels creates enclosed shelf levels, suitable for smaller irregular goods and warehouses with limited height.

Related Products
HEGERLS Clad Rack Warehouse
HEGERLS Clad Rack Warehouse
Integrated Rack-Supported Warehouse Solution for High-Bay Automated Storage
HEGERLS High Bay ASRS Racking
HEGERLS High Bay ASRS Racking
Automated High-Bay Storage Rack System for Intelligent Warehouse Automation
HEGERLS Supermarket Shelving System
HEGERLS Supermarket Shelving System
Flexible Retail Display Shelving Solution for Supermarkets & Commercial Stores
HEGERLS Steel Platform System
HEGERLS Steel Platform System
Heavy-Duty Steel Structure Platform for Maximizing Industrial Space Utilization

FAQ

Q1. What is a cantilever rack?

A cantilever rack is a specialized storage system using vertical columns and horizontal arms to store long, oversized, or irregular materials.

Q2. What products can be stored on cantilever racks?

Cantilever racks are suitable for pipes, lumber, steel bars, metal sheets, profiles, furniture materials, and other long goods.

Q3. What is the difference between single and double cantilever racks?

Single-sided racks are installed against walls, while double-sided racks allow access from both sides and provide higher storage flexibility.

Q4. Are cantilever racks suitable for heavy materials?

Yes. Heavy-duty cantilever racks can be customized for industrial materials with high load requirements.

Q5. Can cantilever arms be adjusted?

Yes. The cantilever arms can be adjusted vertically to accommodate different material sizes and storage requirements.
